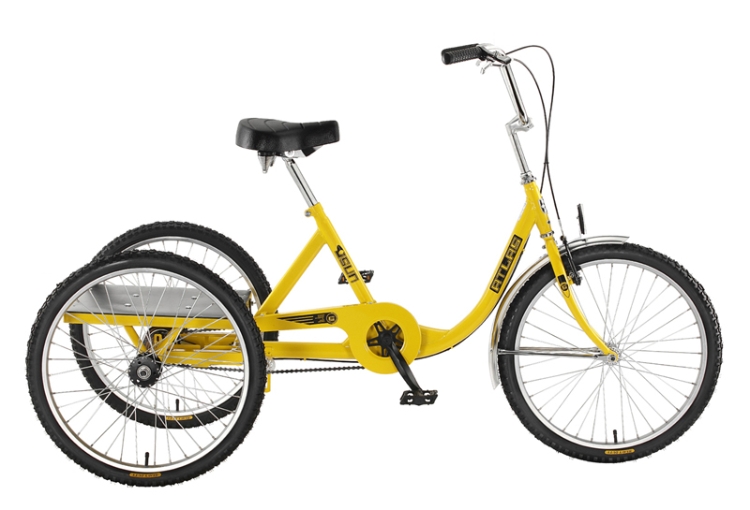

Sun Bicycles Atlas Cargo 24 Industrial Tricycle

  • Parts # 67658
  • Model : SUN BICYCLES Atlas Cargo
  • Supplier Part #
  • TRIKE SUN ATLAS Cargo YL W/ Platform
  • Retail: $869.99
    Price: $749.99
    You Save: $120.00 (13.8%)
      Assembly:

      Audible Warning Device:

      Basket Front:

      Basket Liner Front:

      Carriers:

      Color:

      Computer:

      Drivetrain / Gears:

      Fenders:

      Flag:

      Inflation:

      Light Front:

      Light Rear:

      Lock:

      Mirror:

      Motor Kit:

      Motor Kit Battery:

      Pedal Options:

      Rear Cargo Option:

      Rider Height:

      Rider Weight:

      Tire Liners:

      Tires:

      Trike Cover:

      Tubes:

      Wheels:


      Update price
      Quantity:

      If you've got something heavy to move, the Atlas Cargo Trike can transport it. Our famous trike design is built with oversized, heavy duty, high-tensile steel and is equipped with a reinforced rear deck meant for hauling loads up to 250 lbs. The Atlas Cargo Trike comes standard with tall handlebars, a soft riding saddle, and a rear band brake for extra stopping power. Our Safety Yellow gloss paint helps make sure you are seen in any setting. Now let's get to work!

      • Heavy duty high-tensile steel Low-Step frame
      • Single-speed drivetrain (Additional gearing options available separately)
      • Alloy linear-pull front hand brake and rear band brake with parking locks (Additional brake options available separately)
      • 3-piece steel crankset with sealed cartridge bottom bracket
      • Heavy duty steel rims with 12g stainless steel spokes
      • 24" x 2.125" heavy duty knobby tires
      • 9" hi-rise steel handlebar and stem with rubber grips
      • Heavy duty coil spring saddle with steel base
      • Steel chain guard and nickel plated front fender
      • Heavy duty steel cargo deck with vinyl top
      • 500 Pound Limit (250 Rider & 250 Cargo)
      • Gender Unisex
      • Wheel Size 24"
      • Frame Color : Safety Yellow
      • Rim Color : Chrome
      • Bike Weight 60Lbs
      • Over all Dimension : 30.25" x 71.5" x 45"

      Frameset

      Frame
      67660
      High Tensile Steel, TIG-Welded
      Fork
      67669
      1'' Hi Tensile Steel, Curved Tapered Legs, Double Eyelets
      Drivetrain
      Crank Set
      21058
      Steel, LH Arm, 6", Black
      Chainwheel
      67659
      Steel, RH Arm, 36T x 1/2'' x 1/8''
      Bottom Bracket
      Sealed Cartridge, 68 x 118mm
      Freewheel
      20T x 1/2" x 1/8"
      Chain
      1/2" x 1/8", 124 Link, Black
      Rear Derailleur
      67665
      Chain Tensioner Pulley
      Pedals
      9/16", Black
      Brakes
      Front Brake
      Alloy, Linear Pull, Silver
      Rear Brake
      67936
      Atlas Cargo Band Brake for 15mm Axle
      Brake Lever
      Linear Pull W/Parking Lock, Black/Silver
      Components
      Handlebar
      Steel, 27.6" Wide x 9" Rise x 25.4mm Clamp, CP
      Stem
      58600
      Steel, 22.2 x 205mm Quill x 60mm Ext. x 25.4 Clamp, CP
      Headset
      Steel, Caged Bearings, 22.2 x 30 x 27mm, CP
      Grips
      Foam, Black
      Saddle
      Cruiser, Double Coil Spring Suspension, Molded Foam, Black
      Seat Post
      Steel w/o Clamp, 28.6 x 12", CP
      Seat Clamp / Binder Bolt
      Integrated Bolt/Nut Type, Silver
      Wheels
      Front Wheel
      24" x 36H x 12G Steel, Heavy Duty Trike
      Rear Wheel
      24" x 36H x 12G Steel, Heavy Duty Trike
      Rear Hub
      Trike Steel, 36H, Black
      Spokes
      12G Stainless Steel with Brass Nipples
      Rims
      24" x 36H x 12G, Steel, CP
      Tires
      67666
      24" x 2.125" Black Wall
      Tubes
      24" x 1.90-2.35'', Schrader Valve
      Accessories
      Front Fender
      Steel, Full Wrap, W/Single Strut, Stainless Steel
      Basket
      c21438
      Atlas Cargo Deck Frame
      Replacement Parts
      Frame Rear Unit
      67661
      High Tensile Steel, TIG-Welded
      Chainguard
      67664
      Steel, Painted
      Rear Unit Hardware
      Rear Unit Hardware (INCLUDES 4 BOLTS, 6 NUTS, 4 WASHERS)
      Rear Unit Bearing
      Rear Unit Bearing (QUANTITY OF 4 NEEDED FOR REAR UNIT)
      Rear Unit Axle Complete
      Rear Unit Axle, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)
      Rear Unit Axle Nut
      Rear Unit Axle Nut (FOR 14.8mm AXLE)
      Rear Unit Axle Washer
      Rear Unit Axle Washer (FOR 14.8mm AXLE)
      Rear Unit Axle Spacer
      Rear Unit Axle Spacer, 20mm (FOR 14.8mm AXLE)
      Rear Unit Axle Key
      Rear Unit Axle Key (FOR 14.8mm AXLE)
      Freewheel Adaptor
      Freewheel Adaptor (FOR 15mm AXLE, INCLUDES 2 SET SCREWS)
      Freewheel Adaptor Set Screw
      Set Screw for Freewheel Adaptor
      Rear Hub Bearings
      Cartridge Bearings
      Basket Hardware
      67663
      Atlas Cargo Deck Hardware Kit
      Other
      Weight
      60 Lbs.

      Reviewed By Adulttricyclereview.com

      Sun bicycles have been building quality adult tricycles for over forty years and has become the largest seller of adult tricycles in the world. I personally know Jack and Ben, the owners at Sun Bicycles, and there are no harder working guys in the bike business. Sun Bicycle’s philosophy has always been to offer good quality products at a low price and then stand behind the product. The Sun Atlas is Sun’s most durable industrial tricycle.

      Frame: The frame on the Sun Atlas Cargo is MIG welded together in Taiwan and has a 500 Lbs. capacity. The frame is easily put together by bolting the rear section to the front by using four bolts. The Atlas has a rear platform that bolts directly to the rear frame for carrying your cargo.

      Gearing: The stock set up of the Sun Atlas Cargo is a one speed freewheel. Most factory and industrial users will add the coaster brake kit to the trike so the trike can be stopped by pedaling a quarter turn backwards with the pedals. Sun also offers a three speed and five speed coaster brake kit which is a nice addition if you have to ride up a ramp or hill.

      Braking: The Sun Atlas Cargo uses a “V” style front brake which is welded to the fork of the trike. The “V” brake comes with oversize brake pads and can stop the trike more than sufficiently. The rear brake is a band brake which has a disc on the rear axle and a band that squeezes down on the disc when you wish to stop. Band brakes are very popular in Asia and third world countries because of there simplicity and reliability.

      Seat: Big, oversize and with springs, all of our trike testers feel that the stock seat is of good quality and more than comfortable enough.

      Ride: We like the ride on the Sun trikes. The cranks are positioned a bit farther forward and gives the Atlas Cargo a more recreational feel and adds stability. While moving the cranks farther forward helps stability, it also make riding the trike standing a bit more awkward. The Atlas Cargo handing is precise and predictable and all of our testers thought Sun has offered up a good designed product.

      Wheels: Sun offers only one wheel set for the Atlas Cargo and it is a steel set of wheels with extra thick spokes.

      Other Stuff: Large rear platform, front fender and reflector set are included.

      Pros: The Atlas Cargo brings safety, durability and stability to everyone who rides this well built trike. Features sealed crank, headset and rear axle bearings, extra wide saddle with springs, heavy duty platform The frame is MIG welded together and the construction is solid. The paint is applied evenly and consistently and should last for the life of the trike.

      Cons: You have got to like safety yellow or you are out of luck.

      Overall Customer Rating of 1 Reviews:
      review-star review-star review-star review-star review-star
      Sante Fe

      Review

      Rating:
      review-star review-star review-star review-star review-star
      Pros:
      Cons:
      Quick review of my Sun Atlas Cargo Industrial Tricycle. The good is that the tricycle is well constructed and rides well. I feel the tricycle is a good value and I would buy the tricycle again. I think Sun could do some small improvements like a thicker rear axle and changing out the platform for a basket.
