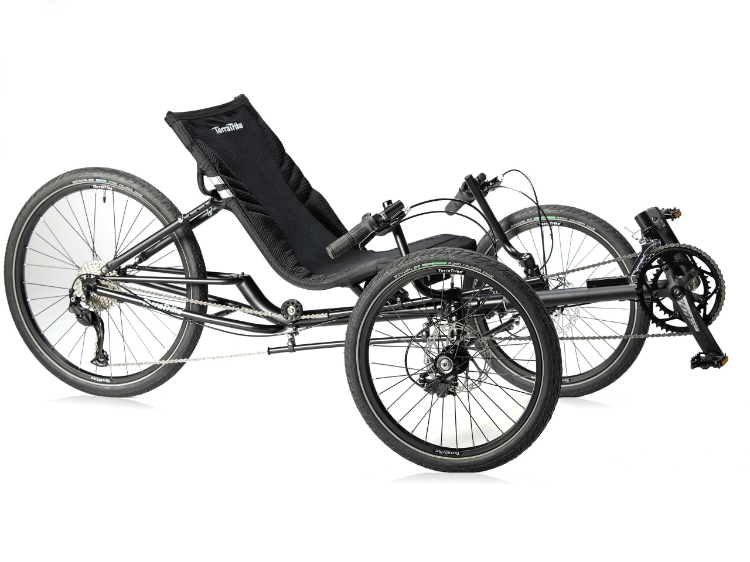

The Gran Tourismo is alluringly sophisticated with exhilarating performance resulting in the ultimate touring machine. With a nod to the original Tour, the GT is the culmination of over 20 years of continued innovation and customer feedback, resulting in the most comfortable and best handling TerraTrike to date.
The sporty yet elegant design is harmoniously
coordinated conveying both aesthetics and dynamics. Engineered from the
ground up to be efficient, beautiful and comfortable, it handles like a
sports car but rides like a luxury sedan.
The most noticeable change is the Y-frame
design which gives added strength while allowing for additional heel
clearance and ease in getting in and out. The equally noticeable
triangulated rear end adds pedaling efficiency, better aerodynamics,
reduced pedal steer and lower center of gravity so that you “stick” to
the road even at higher speeds. The chro-moly steel frame is durable,
more comfortable and provides a “passive suspension” with a smoother
ride. New seat mounting adds rigidity to the trike increasing efficiency
with every pedal stroke.
But it doesn't stop there. We’ve included direct steering along with
TerraTrike’s own “steering stack” that provides a responsive yet
predictable steering experience. The GT also comes standard with a 24”
rear wheel for higher top-end speeds, all while rolling more smoothly
over bumps and retaining momentum. To top it off, the aluminum seat
frame, handlebars and tie rod reduce weight without sacrificing
strength.
The Gran Tourismo features an extended seat
frame with an upgraded seat mesh. This is by far the most comfortable
seat we’ve ever produced and will result in longer, more comfortable
rides; featuring a breathable mesh and extra padding in “all the right
places.” The extra seat frame length is contoured to give additional
support and comfort. There is even a zippered pocket on the rear just
large enough for a wallet, keys or cell phone. The front wheels use a
rapid axle for easy removal for transportation; the seat, a single seat
bolt for quick and easy seat removal; and a single hex key for both.
Pair all of that with the stunningly beautiful paint colors and
you’ll be turning heads all day. The “wet” paint colors add more depth
of color and are durable. Sparkle Gold and Sky Blue are the signature
colors with limited edition colors being offered periodically.
Best of all, the Gran Tourismo accepts all
TerraTrike branded accessories, including the Storage Solutions lineup
of bags and panniers, making this the perfect trike for that
cross-country adventure, your daily commute or the leisurely ride to
your favorite local destination. Check the specifications page for the most current information.
FULL SPECIFICATIONS:
Drive System | | Derailleur |
Num. of Speeds (Stock) | | 6 or 20 |
Gear Inch Range | | 25-99 (x16) / 22-108 (x20) |
Pedals Type | | Comfort Pedal |
Crankset/Rings | | FSA Tempo Double 165mm 34/50t (x16) FSA Gossamer Pro Double 165mm 34/50t (x20) |
Bottom Bracket | | RPM Sealed Square Taper (x16) Integrated MegaExo (x20) |
Chain Type | | KMC Z72 * Speed (x16) KMC X10 10 Speed (x20) |
Front Derailleur | | microSHIFT Double |
Rear Derailleur | | microSHIFT 8Sp (x16) / 10 Sp (x20) |
Cassette Size | | microSHIFT 12-32 8Sp (x16) microSHIFT 11-36 10Sp (x20) |
Steering Stack | | Hybrid Bushing/Bearing |
Shifters | | microSHIFT Mezzo Trigger (x16) |
Brake Levers | | microSHIFT XLE Trigger (x20) Promax Linear Pull, Locking |
Brake Set | | Alhonga Mechanical (x16) Avid BB7 Mechanical (x20) |
Wheel Set | | TerraTrike Silver Single Double Wall (x16) TerraTrike Black Double Wall (x20) |
Tires | | Schwalbe Road Cruiser (x16) Schwalbe Marathon (x20) |
Frame Material | | Chro-moly Steel |
Trike Weight | | 42 lbs |
Weight Capacity | | 300 lbs |
| Rover | Traveler | Rambler | Sportster | Gran Tourismo | Tandem Pro | Rover Tandem |
Frame Material | Hi-Ten Steel | 4130 Chromoly Steel | 4130 Chromoly Steel | 6061 T6 Heat Treated Aluminium | 4130 Chromoly Steel | 4130 Chromoly Steel | Hi-Ten Steel |
Steering System | Direct | Direct | Direct | Direct | Direct | Linkage | Direct |
Seat Type | Chromoly Steel Frame w/ Nylon Cover | 6061 T6 Aluminium Frame With Breathable Mesh | 6061 T6 Aluminium Frame With Breathable Mesh | 6061 T6 Aluminium Frame With Breathable Mesh | 6061 T6 Aluminium Frame With Breathable Mesh | 6061 T6 Aluminium Frame With Breathable Mesh | Chromoly Steel Frame w/ Nylon Cover |
Seat Adjustment | 11.5" Fore/Aft 35-70 Degree Recline | 6" Fore/Aft 40-60 Degree Recline | 6" Fore/Aft 40-70 Degree Recline | 11" Fore/Aft 40-70 Degree Recline | 2.5" Fore/Aft 40-65 Degree Recline | 3" Front/7" Rear 50-70 Degree Front/40-70 Degree Rear | 11.5" Fore/Aft 50-65 Degree Recline |
Boom Type | Adjustable Boom | Adjustable Boom | Adjustable Boom | Adjustable Boom | Adjustable Boom | Interchangeable 3 Sizes | Adjustable Boom |
Wheelbase Length | 40 | 44 | 45 | 42 | 42 | 92 | 84.25 |
Overall Length (medium) | 67.5 | 73 | 74 | 80 | 76 | 122 | 113.25 |
Track Width | 30 | 30.5 | 30.5 | 30 | 30.5 | 31 | 30.25 |
Overall Width** | 33 | 34 | 34 | 33 | 34 | 34 | 33 |
Bottom Bracket Height | 13 | 13 | 13 | 15 | 14.5 | 14 | 12.5 |
Seat Height | 16.5 | 15.5 | 15.5 | 15 | 15 | 11 | 16 |
Total Weight (lbs.) | 44(x8) 47(i8) 48(NuVinci) | 43(x24) 45(n380) 43(GT) | 39.5(x24) 44(AT) 41.5(n380) 40(x30) 64(EVO) | 38(x24) 38(x30) 32(SL) | 42 | 64 | 70 |
Combined Load Limit (lbs.) | 400*** | 300 | 300 | 250 | 300 | 450 | 500 |
Turning Dimensions* | 9' 11" Diameter | 9'6" Diameter | 9' 11" Diameter | 9' 11" Diameter | 12' Diameter | 36' Diameter | 16' 3" Diameter |
Component Levels Available | x8 i8 NuVinci | x24 n380 | x24 n380 x30 AT EVO | x16 x20 SL | x18
| Tandem Pro | i8 |
COMPONENT GROUP LEVELS
| x8 | i8 | n330 | x24 | n380 | x30 |
Drive System | Derailleur | Internal | Internal | Derailleur | Internal | Derailleur |
Number of Speeds (Stock) | 8 | 8 | CVT | 24 | CVT | 30 |
Gear Inch Range | 24-66 | 20-62 (Nexus) | 20-72 | 19-90 (20") 26-123 (26") | 20-75 | 18-90 (20") 23-120 (26") |
Pedals Type | Standard Platform | Standard Platform | Standard Platform | Standard Platform | Standard Platform | Standard Platform |
Crankset/Rings | Alloy Single Black 170mm 38t | Alloy Single 170mm 32t | Alloy Single 170mm 42t | Truvativ Touro Triple 170mm 30/42/52t | Alloy Black 170mm 42t | FSA Gossamer Triple 170mm 30/39/52t |
Bottom Bracket | RPM Sealed Square Taper | RPM Sealed Square Taper | RPM Sealed Square Taper | RPM Sealed Square Taper | RPM Sealed Square Taper | Integrated In Crankset Mega Exo |
Chain Type | KMC Z72 8 Speed | KMC Z72 8 Speed | KMC Z72 8 Speed | KMC Z72 8 Speed | KMC Z72 8 Speed | KMC X10 10 Speed |
Front Derailleur | N/A | N/A | N/A | microSHIFT Triple | N/A | microSHIFT Triple |
Rear Derailleur | microSHIFT �RD-M45L 8 Sp | N/A | N/A | microSHIFT 8 Sp | N/A | microSHIFT 10 Sp |
Cassette Size | Sram PG-830 11-30 8 Speed | 16t Cog | 20t Cog | Sram PG-830 11-30 8 Speed | 20t Cog | microSHIFT 11-32 10 Speed |
Shifters Set | microSHIFT DS85-8 Twist | Twist shifter | NuVinci CVT Shifter | microSHIFT Trigger | NuVinci CVT Shifter | microSHIFT XLE Trigger |
Brake Levers | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Promax Linear Pull, Locking |
Brake Set | Alhonga Mechanical | Alhonga Mechanical | Alhonga Mechanical | Alhonga Mechanical | Alhonga Mechanical | Avid BB-7 Mechanical |
Wheel Set | TerraTrike Silver Single Wall | TerraTrike Silver Single Wall | TerraTrike Black Single Wall | TerraTrike Silver Single Wall | TerraTrike Black Single Wall | TerraTrike Black Double Wall |
Tires/Size | CST Reflective 40 PSI 20 X 1.75 | CST Reflective 40 PSI 20 X 1.75 | CST Reflective 40 PSI 20 X 1.75 | Schwalbe Road Cruiser Reflective 20 X 1.75 | Schwalbe Road Cruiser Reflective 20 X 1.75 | Schwalbe Marathon 20 X 1.5 |
Available On These Frame Models | Rover | Rover Traveler Rambler | Rover | Traveler Rambler Sportster | Traveler Rambler | Rambler Sportster |
| AT | x16 | x20 | SL | Tandem Pro | EVO |
Drive System | Derailleur | Derailleur | Derailleur | Derailleur | Derailleur | Derailleur |
Number of Speeds (Stock) | 20 | 16 | 20 | 30 | 30 | 24 |
Gear Inch Range | 13-79 | 27-106 | 24-116 | 23 - 120 (26") | 18-90 | 18-90 |
Pedals Type | Comfort Studded Pedal | Comfort Pedal | Comfort Pedal | None | Comfort Platform | Comfort Pedal |
Crankset/Rings | FSA Comet Double 165mm 22/36t | FSA Tempo Double 165mm 34/50t | FSA Tempo Double 165mm 34/50t | FSA SL-K Light Carbon Triple 170mm 30/39/52t | FSA Mega Exo 170mm 30/42/52t | Driveline Durabi 400 170mm 52/42/30 |
Bottom Bracket | Integrated MegaExo | RPM Sealed Square Taper | Integrated MegaExo | Integrated MegaExo | Integrated In Crankset Mega Exo | RPM Sealed Square Taper |
Chain Type | KMC X10 10 Speed | KMC Z72 8 Speed | KMC X10 10 Speed | X10 SL Hollow 10 Speed | KMC X10 10 Speed | KMC Z72 8 Speed |
Front Derailleur | microSHIFT XLE Double | microSHIFT Double | microSHIFT Double | Microshift Triple | microSHIFT FD-439 Triple | microSHIFT Triple |
Rear Derailleur | microSHIFT 8 Sp | microSHIFT 8 Sp | microSHIFT 10 Sp | Sram X0 | microSHIFT 10 speed | |
Cassette Size | microSHIFT CS-H100 11-40 | microSHIFT 12-32 8 Speed | microSHIFT 11-36 10 Speed | Sram PG-1070 11-32 10 Speed | Microshift 11-32 10 Speed | Sram PG-830 11-30 8 Speed |
Shifters Set | microSHIFT XLE Trigger | microSHIFT Mezzo Trigger | microSHIFT XLE Trigger | Sram X0 Gripshift | microSHIFT Bar End | microSHIFT Mezzo Trigger |
Brake Levers | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Promax Linear Pull, Locking | Avid Speed Dial 7 | Promax Linear Pull, Locking | Promax Linear Pull, Locking |
Brake Set | Avid BB7 Mechanical | Alhonga Mechanical | Avid BB7 Mechanical | Avid BB7-S Mechanical | Avid BB-7 Mechanical | Avid BB7 Mechanical |
Wheel Set | TerraTrike Black Double Wall | TerraTrike Silver Single Wall | TerraTrike Black Double Wall | Velocity Aeroheat w/bladed spokes | Velocity AeroHeat | TerraTrike Black Double Wall |
Tires/Size | Schwalbe Smart Sam 24x2.10 | Schwalbe Road Cruiser 20 X 1.75(Front) 26 or 24 X 1.5(Rear) | Schwalbe Marathon 20 X 1.5(Front) 26 or 24 X 1.5(Rear) | Schwalbe ONE 20 X 0.9 (F) 26 X 0.9 (R) | Schwalbe Marathon 20 X 1.5 | Schwalbe Energizer 20 X 1.75 |
Available On These Frame Models | RamblerAT | Sportster Gran Tourismo | Sportster Gran Tourismo | Sportster | Tandem Pro | E.V.O. |
All Dimensions In Inches. Specifications and Components Subject To Change Without Notice.
* Turning Dimensions are from the centerline of the trike. NOTE: The fore or aft setup of the seat may change the turning dimensions slightly.
** Can be up to 3" wider depending on position of horizontal handlebars.
*** Heavier? Call us to discuss. 800 561-6670
