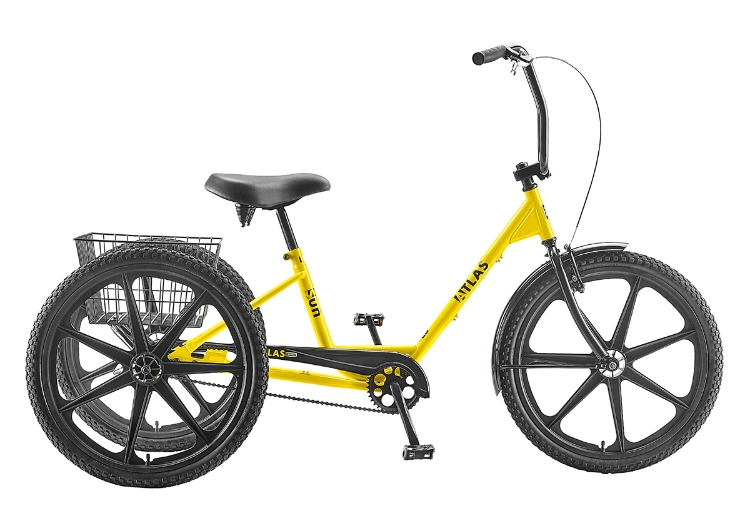

The Atlas Transit can lend a hand whether you need to haul groceries
from your local market or want to transfer packages around your
warehouse. The frame is designed with a very low step-through which
makes getting on and off simple for even individuals with limited
flexibility. This trike is customizable upon purchase with a selection
of three different wheel styles. Choose from Skyway mags, standard alloy
wheels or heavy duty steel wheels with 12 gauge spokes.
- High-tensile steel Low-Step frame
- Single-speed drivetrain (Additional gearing options available separately)
- Alloy linear-pull front brake with parking lock (Additional brake options available separately)
- One-piece steel crank with sealed bottom bracket
- Final wheel selection required at time of purchase
- 24" x 1.95" multi-condition tires
- 13" high-rise steel handlebar and threadless MX stem with rubber grips
- Sun XL trike saddle with heavy duty steel base
- Steel chain guard and front fender
- Viny coated heavy duty steel wire basket
- Wheel options:
- Skyway mags
- Alloy rims with 14g stainless steel spokes
- Heavy duty steel rims with 12g UCP steel spokes
- Unsex
- 24" Wheel
- Step Through 13.5"
- Min Saddle Height 27"
- Over All Dimensions 73" L x 30.25" W
- Frame Standover 13.25"
- Mins Seat to Ground 27.5"
- Min Seat to Pedal 27.0"
- Rider Weight Limit 250 Lbs
Frameset
Frame
High-Tensile Steel, TIG-Welded
Fork
28516
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets
Drivetrain
Crank Set
One-Piece Heavy Duty Hot Forged Steel, 170mm
Chainwheel
Steel, 36T x 1/2'' x 1/8''
Bottom Bracket
Steel for OPC, Caged Bearings with Seal
Freewheel
20T x 1/2" x 1/8"
Chain
Taya 1/2" x 1/8", 130 Links
Pedals
Slip Resistant Top, 1/2"
Brakes
Front Brake
Alloy, Linear Pull
Brake Lever
Linear Pull W/Parking Lock
Components
Handlebar
Steel, 31.5" Wide 13" Rise x 22.2mm Clamp
Stem
Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp
Headset
Steel, Semi Cartridge Bearings, 28.6 x 34 x 30mm
Grips
Heavy Duty Rubber, 125mm
Saddle
Deluxe Cruiser, Double Coil Spring Suspension
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12"
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type
Wheels
Front Wheel
Ordered Separately
Rear Wheel
Ordered Separately
Tires
24 x 1.95", Black Wall
Tubes
24" x 1.95'', Schrader Valve
Accessories
Front Fender
Steel, W/Single Strut, Painted
Basket
Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High
Replacement Parts
Frame Rear Unit
670533
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Chainguard
290099
Steel, Painted
Rear Unit Hardware
Rear Unit Hardware (Includes (4) bolts, (6) nuts, (4) washers)
Rear Unit Bearing
Rear Unit Bearing (Quantitiy of (4) needed for rear unit)
Rear Unit Axle Complete
Rear Unit Axle, 14.8 x 765mm (Includes (1) axle, (2) nuts, (2) washers, (1) axle spacer)
Rear Unit Axle Nut
Rear Unit Axle Nut (For 14.8mm axle)
Rear Unit Axle Washer
Rear Unit Axle Washer (For 14.8mm axle)
Rear Unit Axle Spacer
Rear Unit Axle Spacer, 20mm (For 14.8mm axle)
Rear Unit Axle Key
Rear Unit Axle Key (For 14.8mm axle)
Freewheel Adaptor
Freewheel Adapter (For 14.8mm axle, includes (2) set screws)
Freewheel Adaptor Set Screw
Set Screw for Freewheel Adapter
Basket Hardware
Trike Basket Mounting Hardware
Other
Weight
56 Lbs (with Skyway mags)
