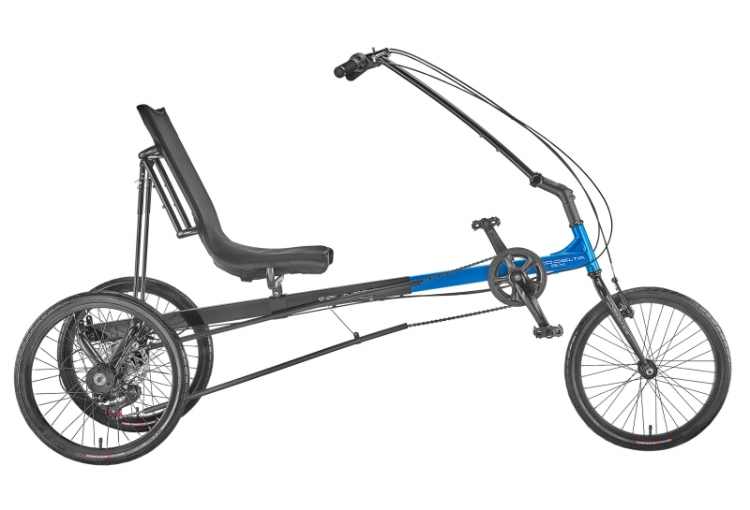

BIKE SUN SKR ECO-DELTA SX 20/20 7s BK/BU

3.00 stars, based on 1 reviews 1 review(s). | Write a review

Part # 670113

Model : SUN SEEKER Eco-Delta SX

BIKE SUN SKR ECO-DELTA SX 20/20 7s BK/BU

Price: $1,289.99

Assembly:

Audible Warning Device:

Basket Rear:

Carriers:

Cell Phone Holder:

Color:

Computer:

Computer Mount:

Crank:

Flag:

Head Rest:

Inflation:

Light Front:

Light Rear:

Lock:

Mirror:

Motor Kit:

Motor Kit Battery:

Mudguards:

Panniers:

Pedal Options:

Rack Bag:

Racks:

Rider Height:

Rider Weight:

Rider X-Seam:

Rollers:

Tire Liners:

Tires:

Trike Cover:

Tubes:

Water Bottle Cage:

Update price

Quantity:

Estimate Shipping

Wheel Base: 42.5 - 63`

Overall Length: 70.5 - 78.75`

Width: 30.25`

Seat Height: 20.5 - 22.75`

Weight: 57 Lbs

Weight Limit: 300Lbs

X-seam: 31-50`

Unisex

31-50` X-Seam

Gloss Black/Bright Blue

20`

Black

68.75 -82.25` (125-209cm)

7 Speed

Disc/Rim Brake

n/a

Frameset

Frame

670114

High Tensile Steel, TIG-Welded

Front Frame

670116

Delta Crank Boom, High Tensile Steel

Fork

28467

High Tensile Steel, TIG-Welded

Drivetrain

Rear Shifter

53069

SunRace 7-Speed Twist Shifter

Rear Derailleur

26877

SunRace, Long Cage

Freewheel

180034

(7-Speed) 13-32T

Freewheel Adapter

6702199

Freewheel Adapter Threaded

Crank Set

210173

3-Piece Alloy W/Integrated Chain Ring, 38T, 170mm, Black

Bottom Bracket

22488

Steel, Caged Bearings, 68 x 119mm

Chain

16064

K.M.C. 1/2 x 3/32'' (286 Links)

Chain Tube

16236

Guide Tube

Chain Tube Bracket

16241

Double Spring w/Hardware

Chain Tube Clamp

16242

Clamp w/Hardware

Pedals

41809

Resin Body, 9/16"

Brakes

Front Brake

12119

Alloy, Linear Pull, Black

Rear brake

120145

Promax DSK-400 Disc w/160mm Rotor

Components

Headset

35042

Steel, 25.4 x 34 x 30mm, Black

Handlebar

34423

Steel, Recumbent w/2 Bottle Braze-ons

Stem

58737

Steel, 25.4 x 220mm Quill x 40mm Ext. x 25.4 Clamp

Grips

32364

EVA Rubber, Locking, 130mm Left / 65mm Right

Front Brake Lever

12416

Linear Pull, w/Lock, Black/Silver

Rear Brake Lever

12417

Linear Pull, w/Lock, Black/Silver

Wheels

Front Hub

37900

Steel, 36H x 14G with 3/8" Bolt-On Axle, Black

Rear Hub

37601

Trike Steel, Pinned, Steel, 36H, Black

Front Rim

47798

20'' x 36H x 14G, Alloy, Black

Rear Rim

47798

20'' x 36H x 14G, Alloy, Black

Spokes

14G UCP with Brass Nipples

Front Tire

60210

Kenda Kwest 20 x 1.50", Black Wall

Rear Tire

60210

Kenda Kwest 20 x 1.50", Black Wall

Replacement Parts

Rear Axle

6702191

Rear Axle, Trike, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)

Axle Bearing

6702184

Rear Unit Axle Bearing 15id x35od x11w X3-SX/AX

Axle Retaining Nut

6702204

Rear Unit Axle Nut (FOR 14.8mm AXLE)

Seat Frame

50181

R-Type 1-Pc Steel, Black

Seat Mesh

50034

R-Type 1-Pc Seat Back Mesh

Seat Mount

50180

Steel for Eco Delta/Tad 50mm TT

Seat Mount Binder

50182

QR M6x95mm Alloy, XL Lever

Upper Strut

67894

Steel 150mm Black

Upper Strut Bolt

67233

M5x35mm

Upper Strut Washer

49671

Curved Nylon Washer

Lower Strut

50044

Steel, Pin Type, 700mm Universal

Lower Strut Slide Bolt

67238

Lower Strut Bolt and Nut

Strut Clamp

67237

Pin with QR

Other

Weight

57 Lbs.

Sun Bicycles Warranty
X-Seam Measuring Chart

Shipping Zone Map

Overall Customer Rating of 1 Reviews:

Write a review!

Read all reviews

Frank

Georgia

Sun Eco Delta

2/2/2019

Rating:

Pros:

Cons:

I would have purchased a different trike if I had to do it again. I should have spent a bit more money and got something a bit higher quality. I think the Sun trike is adequate for someone who just wants to do a lap around the block then put the trike back into the garage. I wish I purchased a trike with more than seven speeds. The tall main tube is another issue I have; it is difficult to get my leg over. I have some rolling hills by where I live which requires me to shift the gears and I feel the shifting system is a low quality system.
