Frameset
Frame
69063
High Tensile Steel, TIG-Welded
Rear Frame
Rear Frame Unit 15mm Axle Non-Cambered
Fork
High Tensile Steel, TIG-Welded
Drivetrain
Front Shifter
SRAM 3.0 3-Speed Grip Shift
Rear Shifter
SRAM 3.0 7-Speed Grip Shift
Front Derailleur
26233
Microshift, DP, 31.8
Sprocket
Fixed Sprocket 15mm x 20T
Freewheel
Sunrace (7-Speed) 14-28T
Crank Set
3-Piece Steel, 170x28/38/48
Bottom Bracket
Steel, Caged Bearings, 68 x 119mm
Chain
K.M.C. 1/2 x 3/32'' (286 Links)
Rear Chain
16365
1/2 x 1/8"
Chain Guide
Single 38x56x15Wx10D
Chain Guide Hardware
Guide Wheel Hardware Single 10x47mm
Pedals
Resin Body, 9/16", Black
Mid Drive Hub
135mm Mid-Hub, F/W, 20T Welded Cog, 6B Disc
Brakes
Front Brake
Alloy, Linear Pull, Black
Rear brake
Promax DSK-400 Disc w/160mm Rotor
Components
Headset
Steel, Caged Bearings, 22.2 x 30 x 27mm, Black
Handlebar
Steel, Recumbent w/2 Bottle Braze-ons
Stem
Recumbent Alloy, 22.2 x 240mm Quill x 40mm Ext., Black
Grips
Kraton Rubber-Gel, 65mm, Black
Front Brake Lever
Linear Pull w/Lock, Black/Silver
Rear Brake Lever
Linear Pull, Black/Silver
Saddle
Recumbent, w/Tri-Stitch Cover
Wheels
Front Hub
Steel, 28H x 14G with 3/8" Bolt-On Axle, CP
Rear Hub
Steel, 36H, Pinned for Trike, Black
Front Rim
16 x 1.5-1.75" Alloy SL 28H
Rear Rim
20 x 1.5-1.75" Alloy SL 36H
Spokes
14G UCP with Brass Nipples
Front Tire
Kenda Kwest K193 16 x 1.5" 60psi
Rear Tire
Kenda Kwest K193 20 x 1.5" 60psi
Replacement Parts
Rear Unit Hardware
Rear Unit Hardware Kit
Rear Axle
Rear Axle EZ3/X3 SX
Axle Bearing
Rear Unit Axle Bearing 15id x35od x11w X3-SX/AX
Axle Retaining Nut
Rear Unit Axle Nut (FOR 14.8mm AXLE)
Seat Mesh
Cool Back Seat Mesh
Seat Back
Cool Back Steel w/Dual Bottle Mounts
Seat Cover
Tri-Stitch Cover
Seat Mount
Steel 1" Black
Seat Mount Binder
QR M6x50mm Alloy
Seat Back Pivot Bolt
10mm, Chrome
Upper Strut
Steel 150mm Black
Upper Strut Washer
Curved Nylon Washer
Lower Strut
Steel, Pin Type, 700mm Universal
Lower Strut Slide Bolt
Lower Strut Bolt and Nut
Reviewed by Adulttricyclereview.com
Sun Bicycle has been building adult tricycles for over forty years
and has become the largest seller of adult tricycles in the world. I
personally know Jack and Ben, at Sun Bicycle, and there are no harder
working guys in the bike business. Sun Bicycle’s philosophy has always
been good quality at a low price and they stand behind the product.

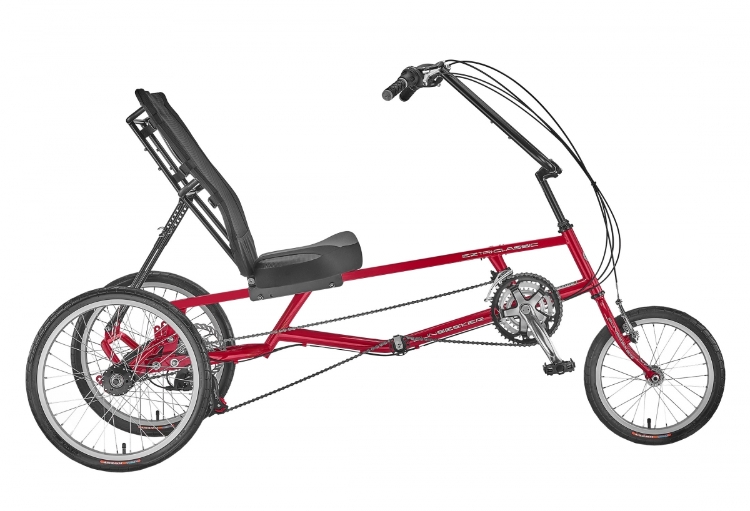

The Sun EZ-Tri Classic SX trike is a nice entry level delta style
trike. This trike has some of the same great features as the other Sun
recumbents, just at a lower price point. One of the most loved features
is the adjustable super soft gel seat and mesh back support. The seat
is wide and just shaped right for your bottom, no matter if you are
skinny or much more padding of your own. The seat back support is
contoured for your lower back and can be adjusted for your personal
taste with the nylon mesh straps on the back of the seat.
Sun’s seat frame can accommodate two water bottles and is designed to
accommodate people up to 300 lbs. The seat can be easily adjusted by
the two quick releases under the seat without using any tools. The seat
angle can be adjusted without any tools as well, using the two spring
clips on the seat stays.
Sun was able to keep the cost low by making the frame out of steel,
compared to aluminum. I will have to say that the TIG welding is very
precise, performed cleanly and consistently. The Chain Idler is well
done and securely welded to the frame to stop the chain from bouncing
too much. The Sun EZ-Tri Classic SX comes with 100 psi, low rolling,
resistance Kenda Kwest tires for an incredibly smooth, fast and
effortless ride.
Shimano’s 21 speed drive train really gives you enough gears to
conquer just about any hill you can find. Stopping the Sun EZ-Tri
Classic trike is performed by a powerful rear-wheel disc brake and a
linear-pull front brake which worked flawlessly. The brake levers come
with a parking brake button so you can park on a hill and have no
worries about your trike rolling away. The handlebars have a
comfortable bend and have attachments to carry two water bottles.
Though the Sun EZ-Tri Classic SX is designed with comfort in mind,
the trike is perfect for intermediate and casual riders looking for some
light touring, commuting or just plain bike path fun.
