SUN SEEKER Eco-Delta SX Delta Style Recumbent Trike
Skip to main content
0 0 Item(s)

Call us: 1800-561-6670

If you feel that you've received this message in error, please click here for more information.

  • Sun Seeler Eco Delta SX Red
  • Sun Seeler Eco Delta SX Red

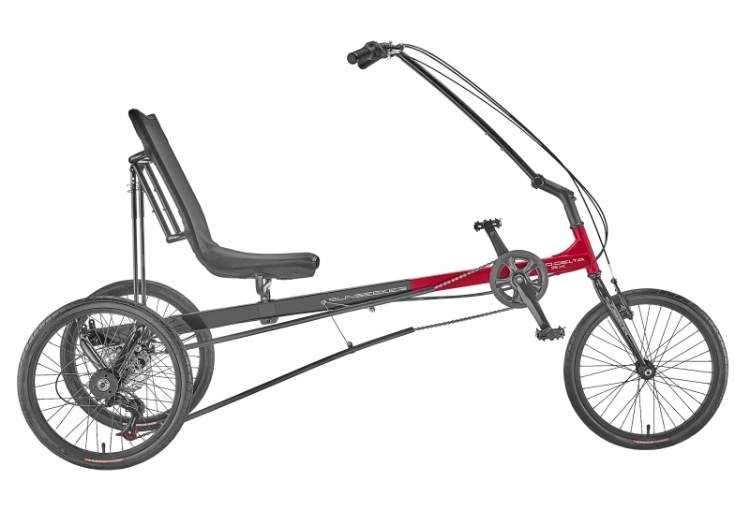

Sun Seeler Eco Delta SX Red

SUN SKR ECO-DELTA SX 20/20 7s BK/RD

Item #: J6701114163859446
review-star review-star review-star review-star review-star
3 review(s).
Price: $1,289.99
    The product is in stock Availability: In Stock
    Usually ships In 1-2 Business Days
    In Stock Quantity: 2
    Assembly:

    Audible Warning Device:

    Basket Rear:

    Carriers:

    Cell Phone Holder:

    Color:

    Computer:

    Computer Mount:

    Crank:

    Flag:

    Head Rest:

    Inflation:

    Light Front:

    Light Rear:

    Lock:

    Mirror:

    Motor Kit:

    Motor Kit Battery:

    Mudguards:

    Panniers:

    Pedal Options:

    Rack Bag:

    Racks:

    Rider Height:

    Rider Weight:

    Rider X-Seam:

    Rollers:

    Tire Liners:

    Tires:

    Trike Cover:

    Tubes:

    Water Bottle Cage:


    Update price
    Quantity:

    About This Item

  • Part # 670111
  • Model : SUN SEEKER Eco-Delta SX
  • BIKE SUN SKR ECO-DELTA SX 20/20 7s BK/RD
    •
  • Wheel Base: 42.5 - 63`
  • Overall Length: 70.5 - 78.75`
  • Width: 30.25`
  • Seat Height: 20.5 - 22.75`
  • Weight: 57 Lbs
  • Weight Limit: 300Lbs
  • X-seam: 31-50`
  • Unisex
  • 31-50` X-Seam
  • Gloss Black/Bright Red
  • 20`
  • Black
  • 68.75 -82.25` (125-209cm)
  • 7 Speed
  • Disc/Rim Brake
  • n/a

    • Frameset

    Frame
    670114
    High Tensile Steel, TIG-Welded
    Front Frame
    670116
    Delta Crank Boom, High Tensile Steel
    Fork
    28467
    High Tensile Steel, TIG-Welded
    Drivetrain
    Rear Shifter
    53069
    SunRace 7-Speed Twist Shifter
    Rear Derailleur
    26877
    SunRace, Long Cage
    Freewheel
    180034
    (7-Speed) 13-32T
    Freewheel Adapter
    6702199
    Freewheel Adapter Threaded
    Crank Set
    210173
    3-Piece Alloy W/Integrated Chain Ring, 38T, 170mm, Black
    Bottom Bracket
    22488
    Steel, Caged Bearings, 68 x 119mm
    Chain
    16064
    K.M.C. 1/2 x 3/32'' (286 Links)
    Chain Tube
    16236
    Guide Tube
    Chain Tube Bracket
    16241
    Double Spring w/Hardware
    Chain Tube Clamp
    16242
    Clamp w/Hardware
    Pedals
    41809
    Resin Body, 9/16"
    Brakes
    Front Brake
    12119
    Alloy, Linear Pull, Black
    Rear brake
    120145
    Promax DSK-400 Disc w/160mm Rotor
    Components
    Headset
    35042
    Steel, 25.4 x 34 x 30mm, Black
    Handlebar
    34423
    Steel, Recumbent w/2 Bottle Braze-ons
    Stem
    58737
    Steel, 25.4 x 220mm Quill x 40mm Ext. x 25.4 Clamp
    Grips
    32364
    EVA Rubber, Locking, 130mm Left / 65mm Right
    Front Brake Lever
    12416
    Linear Pull, w/Lock, Black/Silver
    Rear Brake Lever
    12417
    Linear Pull, w/Lock, Black/Silver
    Wheels
    Front Hub
    37900
    Steel, 36H x 14G with 3/8" Bolt-On Axle, Black
    Rear Hub
    37601
    Trike Steel, Pinned, Steel, 36H, Black
    Front Rim
    47798
    20'' x 36H x 14G, Alloy, Black
    Rear Rim
    47798
    20'' x 36H x 14G, Alloy, Black
    Spokes
    14G UCP with Brass Nipples
    Front Tire
    60210
    Kenda Kwest 20 x 1.50", Black Wall
    Rear Tire
    60210
    Kenda Kwest 20 x 1.50", Black Wall
    Replacement Parts
    Rear Axle
    6702191
    Rear Axle, Trike, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)
    Axle Bearing
    6702184
    Rear Unit Axle Bearing 15id x35od x11w X3-SX/AX
    Axle Retaining Nut
    6702204
    Rear Unit Axle Nut (FOR 14.8mm AXLE)
    Seat Frame
    50181
    R-Type 1-Pc Steel, Black
    Seat Mesh
    50034
    R-Type 1-Pc Seat Back Mesh
    Seat Mount
    50180
    Steel for Eco Delta/Tad 50mm TT
    Seat Mount Binder
    50182
    QR M6x95mm Alloy, XL Lever
    Upper Strut
    67894
    Steel 150mm Black
    Upper Strut Bolt
    67233
    M5x35mm
    Upper Strut Washer
    49671
    Curved Nylon Washer
    Lower Strut
    50044
    Steel, Pin Type, 700mm Universal
    Lower Strut Slide Bolt
    67238
    Lower Strut Bolt and Nut
    Strut Clamp
    67237
    Pin with QR
    Switch to the Text Only Editor
    Other
    Weight
    57 Lbs.
