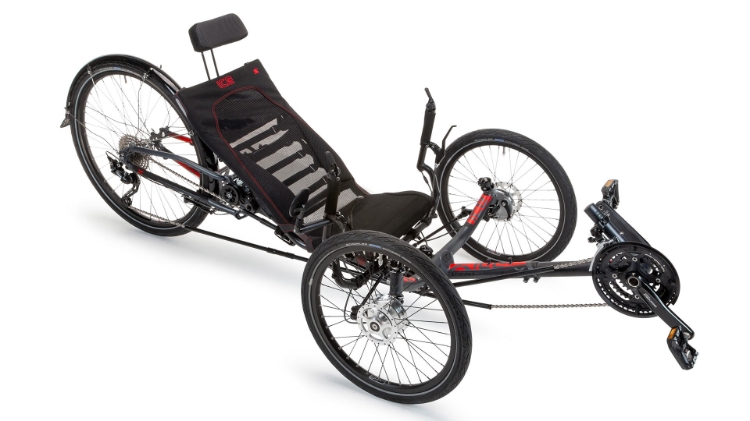

ICE Sprint X Tour

Phone 800 561-6670

EMail: info@industrialbicycles.com

Made in United Kingdom

Links to ICE Fast Track Series of Trikes

ICE Trike Sprint X Tour 26 Fast Track Rigid

ICE Trike Sprint X Tour 26 Fast Track Rear Suspension


Price: $3,048.00
    Assembly:

    Audible Warning Device:

    Brakes:

    Carriers:

    Chain Wheel Guard:

    Color:

    Computer:

    Computer Mount:

    Crank:

    Drivetrain / Gears:

    Flag:

    Front Suspension:

    Front Suspension Elastomers:

    Hand Support:

    Head Rest:

    Light Front:

    Light Mount:

    Light Rear:

    Luggage Bag:

    Mirror:

    Motor Kit:

    Motor Kit Battery Mount:

    Mudguards:

    Paniers:

    Parking Brake:

    Pedal Options:

    Quick Chain Adjustment Kit:

    Quick Folding Kit:

    Racks:

    Rear Suspension:

    Rear Suspension Elastomer:

    Rider Height:

    Rider Weight:

    Rider X-Seam:

    Rollers:

    Seat:

    Seat Sizing Bracket:

    Side Handlebar Bag:

    Stand Up Aid:

    Tire Liners:

    Tires:

    Touch Up Paint:

    Trailer:

    Tubes:

    Water Bottle Cage:

    Water Bottle Cage Riser:

    Wheels:


    Update price
    Quantity:

    SWEPT DESIGN CRUCIFORM AND SECURE INDEXED HANDLEBAR CLAMPS

    The 2018 Sprint X Tour now features our new easy access swept cruciforms. Allowing you to get your feet further under you for a more stable entry and exit of the trike, this also creates improved heel clearance for smaller riders.

    All models now feature a new handlebar clamping system with super secure indexed clamps to ensure the handlebars easily remain fixed in position at all times and return to your preferred position after folding the trike.

    Ergo-Flow Mesh Seat

    Fitted as standard to the Sprint X Tour, and comprised of a seat frame and cover, the Ergo-Flow seat has been designed to provide optimum back support. The cover features breathable fabrics to maximise airflow, whilst cushioning in the base and side bolsters enhances comfort.

    The tension in the back can be easily adjusted to suit the rider, and there is a handy weather-sealed pocket for small items such as keys and phones at the top.
    The Sprint X tour can also be configured with Air-Pro hard-shell seat if you wanted a more firmer sportier ride.

    C.F.T Fold

    The ICE Compact Flat Twist fold is one of the many innovations that ICE has brought to the recumbent world. The fold is based around a lightweight heat-treated aluminium hinge on the main frame.
    Simply remove the seat, fold the handlebars flat, and undo the quick release lever to fold the frame. As the frame folds, the rear wheel pivots to fit flat between the front wheels. The CFT fold allows the trike to be folded in under 30 seconds and works with ICE accessories.

    OPTIONAL SHIMANO STEPS E-ASSIST

    All folding ICE Trikes can be fitted with the Shimano STEPS E-Assist System. Beautifully integrated, available in two models:

    E6100 - Powerful 250w electric motor, 60Nm torque, 418 Wh or 504 Wh battery, optional electronic fully automatic gear shifting.

    E8000 - Powerful 250w electric motor, 70Nm torque, 504 Wh battery, Bluetooth connectivity, optional XT Di2 electronic gear shifting.


    Technical Data


    Overall width

    31.5"-32.5" (800mm-825mm)

    Overall height

    23.2"-26.4" (590mm-670mm)

    Overall length

    70.1"-87.4" (1780mm-2220mm)

    Folded width

    31.5"-32.5" (800mm-825mm)

    Folded height

    19.3"-26.2" (490mm-665mm)

    Folded length

    39.4"-47.2" (1000mm-1200mm)

    Seat height

    8.1" (205mm)

    Seat width

    15" (380mm)

    Seat depth

    9.8" (250mm)

    Seat angle adjust

    36 - 42 degrees

    Turning circle

    16'4"-17'4" (5m-5.3m)

    Rider weight limit (Ergo-Mesh seat)

    275lbs (125kg)

    Rider weight limit (Air-Pro seat)

    229lbs (104kg)

    Overall weight from (rigid used for example)

    35.8lbs (16.2kg)

    Rider size (X-seam)

    35" - 50" (889mm - 1270mm)

    Track width

    29.5" (750mm)

    Wheel base

    41.6"-46.1" (1055mm-1170mm)

    Ground clearance (ride height adjusted)

    3" (75 mm)

    Suspension Travel Rear (optional)

    4" (100mm)

    Suspension Travel Front (optional)

    1.5" (40mm)
