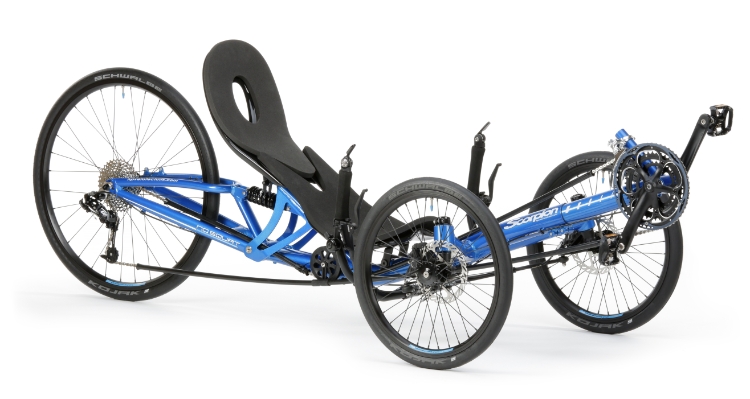

The Hp Velotechnik Scorpion 2 Recumbent Trike
has the plushest and most refined suspension system system available.
The Scorpion 2 suspension is quick responding along
with precise steering and optimum steadiness makes this trike a pure joy
to ride. The rear suspension offers 3.54'' of travel and is
designed to use standard steel coil spring or air-chamber rear shock.
HP Velotechnik's reliable
No-Squat-Design assures fast acceleration without unwanted power
loss from the suspension.
The Scorpion 2 suspension and adjustable BodyLink
seat assure a relaxing and comfortable ride. The aluminum frame's cross
member is curved upward and forward to meet the extra durable wheels up
front. The curved cross member also allows easy access to the seat
and avoiding heel interference for smaller riders. The Scorpion 2 has a wide track than
other trikes, 31 3/4'' and the wheelbase of 43 1/2'' guaranteeing a
stable, comfortable ride and safe braking. The Scorpion 2
fits through standard doorways and has a tight turning circle of just
17.6'. With
a seat height of 11 1/2'' with the Body Link Seat or 3.54''
9cm higher and more upright with our high mesh seat. Folded size 125x83x62mm
with rack and wheel on.
Hp Velotechnik Scorpion Specifications
| seat height | 26 cm / 10" BodyLink-seat
29 cm / 11 1/3" ErgoMesh seat
37 cm / 14 1/2" ErgoMesh HS seat |
|---|
| pedal axle height | 34–39 cm / 14" |
|---|
| suspension travel | 8 cm / 3"
No-Squat-Design |
|---|
| seat | HP BodyLink-seat
angle and length adjustable
or ErgoMesh seat |
|---|
| seat angle |
|---|
| wheel size | 20" (ISO 406) |
|---|
| max. tire width | 5 cm / 2" |
|---|
| wheelbase | 109 cm / 43" |
|---|
| length | 170–200 cm / 70–79" |
|---|
| track width | 78 cm / 30 3/4" |
|---|
| width | 83 cm / 32 3/4" |
|---|
| turning circle | 4,68 m
diameter |
|---|
| bottom bracket | BSA 68 mm |
|---|
| weight | from 15,6 kg / 34 1/2 lbs incl. pedals |
|---|
| max load | 150 kg / 330 lbs |
|---|
| frame | Aluminium 7005T6 heat treated |
|---|
| suspension pivot | maintenance free |
|---|
finish
phosphated and
powdercoated | dark blue RAL5004
pearl orange
custom colour |
|---|
| rider height | min. ca. 1,60 / 5' 5"
(Inside leg length ca. 78 cm / 30 3/4")
max. ca. 2,00 m / 6' 7"
X-Seam min. 0,855 m*
X-Seam max. 1,22 m |
|---|
| frame warranty | 10 years |
|---|
