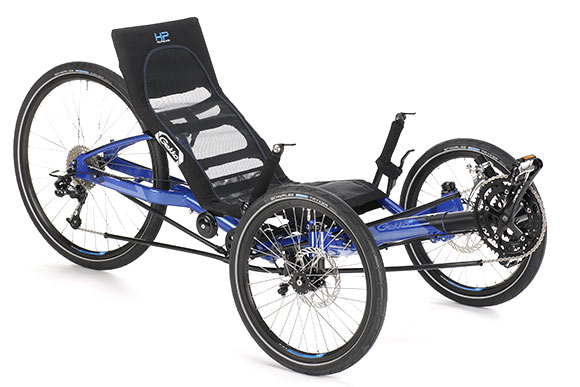

The Hp Velotechnik Gekko FX 26 has been redesigned for 2018 and has small refinements
every year after. The Hp Velotechnik's Gekko FX 26 attention to detail is fantastic and is
really fun to ride, The Gekko FX 26 has a very tight turning radius, responsive steering,
and good behavior on descents. It feels glued to the ground on fast curves and gives the
rider a feel of confidence and safety. Getting in and out of the seat is simplified by
a higher (13 2/3" 35mm) seat height the swept-back cross members of the
frame, allowing riders to get their feet well under them. The Gekko
FX 26 tips the scale to only 15.8 Kg thanks to its aluminum frame.
The Gekko FX 26 folds so simply, with just two quick-release levers, and,
more importantly, that you do not have to remove the seat. The Gekko FX
26 folds fastest than any trike on the market so you can easily take it
with you. The seat simply folds down using a hinge where the seat back
meets the seat pan and the back half of the frame simply folds under the
front of the trike without removing any of your accessories.
| Sport configuration
The right setup for all recument enthusiasts who are budget oriented without compromising the overall riding performance | Performance configuration
You are aiming for the long haul and like to go out for epic rides on a regular base – this will be your perfect match! |
Drivetrain | 24 speed | 30 speed |
Derailleurs | Sram X4 rear, Microshift front | Sram GX rear, Microshift front |
Cassette | Sram PG-820, 8 speed, DuraBlast sprockets | Sram PG-1030, 10 speed, steel lock ring, heat treated steel cogs with aluminum spider, durable nickel chrome finish |
Shift levers | Sram X4 twist shifters | Sram TT-500 barend shifters |
Chain | KMC Z8 medium rust protection, stretch proof | KMC X10 EL excellent rust protection, extra stretch proof, lightweight |
Crankset | Shimano FC-TY 501 triple steel chain rings | Durabi 400 triple aluminum chain rings |
Brakes | Shimano BR-M 315 hydraulic disc brakes with 160 mm rotor | Shimano BR-M 315 hydraulic disc brakes with 160 mm rotor |
Front hubs | HP Sport with thru-axle | HP Performance with one key release quick mount |
Front tires | Schwalbe Road Cruiser 47 mm, Kevlar reinforced for puncture protection, well-balanced rolling and durability chararacteristics | Schwalbe Tryker 40 mm, low rolling resistance, precise steering |
Rear tire | Schwalbe Road Cruiser 47 mm (20" and 26" models) | 20" model: Schwalbe Tryker 40 mm,
26" model: Schwalbe Marathon Racer 40 mm, good puncture protection and grip, low rolling resistance |
Pedals | VP-893, one-piece black polypropylene body and cage, boron steel axle, ball bearings | VP-199A, aluminum body and cage, CNC Cr-Mo axle, ball bearings |
AdultTricycleReview.com Review From
Hp Velotechnik Gekko FX 20 And Gekko FX 26 Posted on December 12, 2021
The Hp Velotechnik Gekko FX 20 and Gekko FX 26 are non suspended aluminum folding trikes. Hp Velotechnik claims the trike can be folded as fast as 7-8 seconds but as fast as I could do it, is ten seconds. I know what you are thinking, my wife thinks I should be able to get jobs completed around the house faster than they happen, just like folding this trike. I guess I am about two seconds off the back on more than one thing in life. There are two ways to get a Gekko from Hp Velotechnik. You can get a highly customized Gekko FX 20 or Gekko FX 26 from Germany or the same trike in the USA
but with only a few options. The Gekko from Germany will cost you a bit more but you can get it the way you like.
Frame: The frame on the Hp Velotechnik Gekko’s are beautifully constructed. The TIG welding on the Aluminum frame is consistent and smooth; I found no gaps in the welding or imperfections. I would say it is as perfect as it gets. The hinge is very solid and well made; we got zero flex out of the hinge in our testing. The Gekko FX 20 and Gekko FX 26 both have a flat fold design. The seat does not have to be removed like other trikes on the market. The rear of the trike folds uniquely under the trike rather than on top of the trike, like most brands.
Paint: The paint was very nice. The paint was applied evenly and consistently with no thin spots or runs. The paint looked to be very generously applied. The paint looked to be a candy apple paint job, where you are looking through the red or blue into the silver primer below. The paint job looked to be very high quality and should last the life of the trike.
Drive Train: The Gekko FX 20 and Gekko FX 26 comes with a SRAM X4/X5 twenty four speed drive train and grip type shifters. The stock 24 speed drive train gives most riders enough gears to conquer just about any hill they can find. Hp Velotechnik chose a Truvativ ISOflow alloy crank 170 mm long with 52/42/30 chain rings and a sealed Truvativ bottom bracket. Note the Drive Train will change for 2022 to a one by eleven.
Brakes: The brakes are Shimano Hydraulic disc brakes which do an excellent job in stopping the trike. Not only does the Shimano brakes work very well, but the brake pads are readily available at most bike shops. Most people add the remote parking brake which is very easy to use. If you are very weigh conscious you can use a small piece of Velcro and rape it around the handle bar and brake lever.

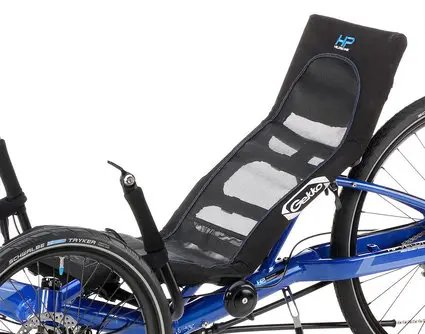

Seat: The bottom of the seat is in a fixed position with a reciprocated breathable foam pad for extra comfort. The seat back mesh is very breathable; the seat back angle can be adjusted from 33-42 degrees. The extra side padding on the seat mesh not only gives extra conform but also helps hold the rider in the seat better. I liked the extra padding on the seat fabric and the straps to hold the seat fabric to the seat frame were easily adjustable. The breathable mesh seat fabric can accommodated people up to 287 Lbs. Hp Velotechnik has now come up with a seat angle adjustable bracket for the Gekko allowing the rider to increase the seat angle all the way up to 51 degrees.
Ride: The ride, well if I had to use one word, it would be awesome or maybe comfortable or maybe spirited, or maybe fun, or maybe I just could not decide which word to use. The Gekko FX 20 and Gekko FX 26 handling is just perfect, back to that one word again. As for the ride between the Gekko FX 20 and Gekko FX 26, I would say close. The Gekko FX 26 has a slightly smoother ride due to the larger 26 inch rear wheel. The 26 inch rear wheel will also give you a higher range on all your gears but you have to decide which is the best choice for you, 20 or 26 inch. As for the Gekko FX 20, the 20 inch rear wheels advantages can be that it will be easier to climb a very steep hill due to the lower gear ratio or the 20 inch rear wheel. Other advantages are the Gekko FX 20 fold smaller, is a bit lighter and the 20 inch rear wheel will be stronger that a 26 inch rear wheel. With a seat height of 35 cm
the Gekko FX has a slightly higher seat height than the ICE Sprint, which is 20 cm and very close to the Catrike 5.5.9., which is 35.6 cm. The Gekko’s come with Schwalbe tires, which have a very good roll and still offer a good amount of flat tire resistance and comfort.
Accessories: There are lots of options available for the Gekko Trikes. The most popular accessories are rear rack, neck rest, B and M mirrors, and mudguards. Other popular accessories are safety flags, front and rear lights, and motor kits.
In Conclusions: If you want a trike without a suspension, simply you can not go wrong with either one of the Gekko FX 20 or Gekko FX 26.
Pros: Quality, attention to detail and just perfect handling, only 34.8 Lbs.
Cons: Some people may find the folding under of the rear wheel is more difficult to fold than trikes like the ICE Sprint.
