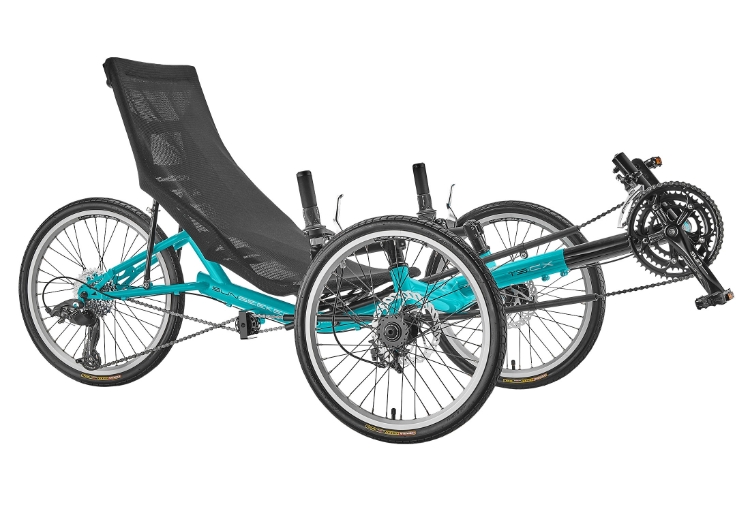

SUN SEEKER T3 CX Tadpole

2.67 stars, based on 3 reviews 3 review(s). | Write a review

Phone: 800 561-6670

Parts # 671183

Model : SUN SEEKER T3 CX Tadpole

Supplier Part #671183

BIKE SUN SKR T3 CX TRIKE 22 20/20 MEDITERRANEAN BU

Price: $2,299.99

Assembly:

Audible Warning Device:

Carriers:

Cell Phone Holder:

Color:

Computer:

Computer Mount:

Computer Sensor Mount:

Computer/Light Caddy:

Crank:

Flag:

Hand Support:

Inflation:

Light Front:

Light Rear:

Lock:

Mirror:

Motor Kit:

Motor Kit Battery:

Mudguards:

Panniers:

Pedal Options:

Quick Chain Adjustment Kit:

Rack Bag:

Racks:

Rider Height:

Rider Weight:

Rider X-Seam:

Rollers:

Tire Liners:

Tires:

Trike Cover:

Tubes:

Water Bottle Cage:

Update price

Quantity:

Estimate Shipping

The T3 CX and AX are performance minded tadpole trikes that handle like a racecars on rails. These trikes feature Direct Steering and a one-piece Sling Seat system, giving you relaxed, strain-free steering and cool comfort without any saddle pressure. With the T3 series trikes you'll wonder how you got to your destination so easy and comfortably. As with the rest of the SUN Recumbent line up, the T3 models also include the new rattle-free and infinite-adjust seat struts.

Wheel Base: 39" (99cm)
Overall Length: 65"-73" (165-185cm)
Width: 33" (85cm)
Seat Height: 13"-14" (33-35.5cm)
Weight: 39 lbs
Weight Limit: 300 lbs
X-Seam: 35-50" (89-127cm)
(Boom modification may be required from 35-38")

Frame Type:	Unisex	Frame Size:	35-50" X-Seam
Frame Color:	Mediterranean Blue	Wheel Size:	20"
Rim Color:	Silver/Black	Overall Length:	65-73" (165.1-185cm)
Gearing:	24 Speed	Brakes:	Disc Brake
Frame Standover:	n/a	Min Seat to Ground:	13-14"
Min Seat to Pedal:	35-50"	Bike Weight:	39 Lbs.
Rider Weight Limit:	300 Lbs.

Frameset

Frame

68658

4130 Chromoly, TIG-Welded

Front Frame

68675

Tadpole Crank Boom, Chromoly

Left Fork

27955

Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount

Right Fork

27956

Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount

Drivetrain

Front Shifter

53939

SRAM 3.0 3-Speed Grip Shift

Rear Shifter

53941

SRAM 3.0 8-Speed Grip Shift

Front Derailleur

26234

Microshift FD-R438, DP, 31.8 Clamp

Rear Derailleur

26305

SRAM 3.0 8spd, Long Cage

Freewheel

18642

SRAM PG-830 (8-Speed Cassette) 11-32T

Crank Set

21323

Sun, 170x52/42/30, Alloy, Black

Bottom Bracket

17124

Sealed Cartridge, 68 x 113.5mm

Chain

K.M.C. Z72, 1/2" x 3/32", Sil/Gry

Chain Guide

16233

Single 38x56x15Wx10D

Chain Guide Hardware

16182

Guide Wheel Hardware

Chain Tube

16236

Guide Tube

Chain Tube Bracket

16241

Double Spring w/Hardware

Chain Tube Clamp

16242

Clamp w/Hardware

Pedals

Resin Body w/Alloy Cage, 9/16"

Brakes

Front Brake

120145

Promax Mechanical Disk, 160mm Rotor

Components

Headset

35508

Steel, Caged Bearings, 28.6 x 34 x 30mm, Black

Right Handlebar

33784

Tadpole Right Handlebar, Alloy w/28.6mm Steerer Clamp

Left Handlebar

33783

Tadpole Left Handlebar, Alloy w/28.6mm Steerer Clamp

Handlebar End

33785

Tadpole Handlebar End, Alloy w/25.4mm Clamp

Grips

Kraton Rubber-Gel, 65mm, 2-Tone Black/Grey

Front Brake Lever

12414

Alloy, Linear Pull w/Lock, Black/Silver

Wheels

Front Hub

38751

Alloy, 36H x 14G Tadpole, Disc, Black

Rear Hub

18642

Alloy 36H x 14G, QR, 8sp Cassette, Black

Front Rim

48166

Alloy, Double Wall 20'' x 36H,w/Eyelet, Black

Rear Rim

48166

Alloy, Double Wall 20'' x 36H,w/Eyelet, Black

Spokes

Stainless Steel

Front Tire

59827

Kenda Kwest 20 x 1.25", 100psi, Black Wall

Rear Tire

59827

Kenda Kwest 20 x 1.25", 100psi, Black Wall

Replacement Parts

Head/Derailleur Tube Cap

35511

Head/Derailleur Tube Cap

Steering Linkage

68682

Tadpole 522mm Black

Front Axle

38883

Tadpole Axle Set

Seat Frame

49642

Sling Alloy, Black

Seat Mesh

49676

Sling Seat Mesh

Seat Mount Binder

50040

Alloy, QR M6x92mm, XL Lever

Upper Strut

67893

Alloy 150mm Black

Upper Strut Bolt

49672

M5x35mm

Upper Strut Washer

49671

Curved Nylon Washer

Lower Strut

50043

Alloy, Pin Type, 700m

Lower Strut Slide Bolt

67238

Lower Strut Bolt and Nut

Strut Clamp

Alloy Single Clamp 12.8mm, M5 bolt, Pair

Strut Peg QR

67237

Steel Pin, QR

X-Seam Guide
Service Chainline Drawing

https://www.fedex.com/templates/components/apps/wgsm/images/outbound/p482u.png

https://www.industrialbicycles.com/images/fedex-days.png

Overall Customer Rating of 3 Reviews:

Write a review!

Read all reviews

Larry R

Indiana

A few mods needed to be happy

4/29/2021

Rating:

Pros:

Cons:

Fun to rode. I detested the stock shifters, went to bar end and am now content. I'm comfy on it, you have to dial in the seatback angle, but it is easy to adjust. I've had it about a year.

William

Crawfordville Fl.

Trike come up short on comfort

5/1/2018

Rating:

Pros:

Cons:

Bought this trike used for $500.00 which was a very good deal. The trike come up short on the seat is angle back to far and the handlebar it too straight up and down. The more you angle the seat up the worse the handlebars feel. Stock tire are low quality but you can easily upgrade those.

Larry

Little Rock, AR

Sun T3 CX

9/7/2017

Rating:

Pros:

Cons:

I bought this trike a little over a year ago and really wanted to love it. At first glance this trike had all of the features I was looking for but now, at this price doesnt quite make since. The steering system is a bit archaic and the seating position is a bit odd. Do your self a favor and look at an HP gekko or a TerraTrike GranTourismo for not much more money.
