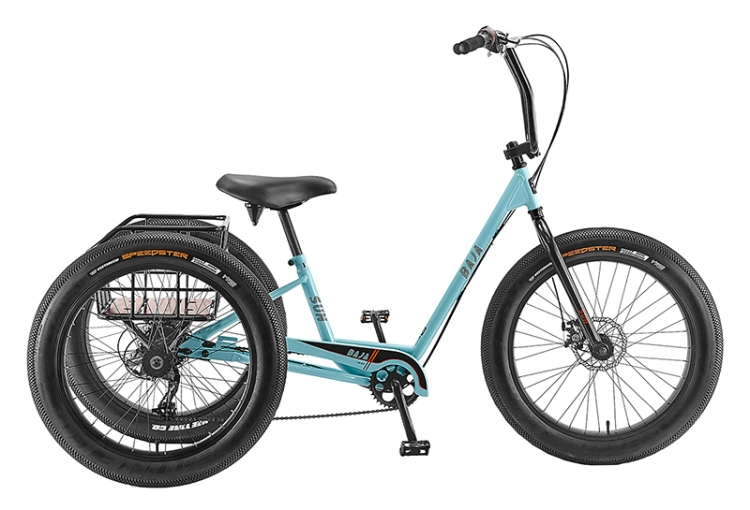

The new Sun Bicycle Baja Trike is fashioned from the wildly successful Baja Cruz, a
two-wheeled model that first introduced the cycling world to wide-tired
beach cruising. Now that same great experience can be had on three
wheels! The Baja Trike gives you stability and comfort like never
before. Fully featured, it comes with easy twist-shift gearing for hills
and smooth, powerful disc brakes front and rear. With both fun and
understated color options, the glossy frame and matching painted chain
guard adds a touch of class and the high handlebars put you in control.
Consider this the SUV of our line, it puts in work and it still brings
the party wherever it goes.
High-tensile steel Low-Step frame Sunrace 7-speed drivetrain Sunrace twist shifter Mechanical disc front and rear brakes with parking locks One-piece steel crank with caged bearing bottom bracket 80mm wide alloy rims with stainless steel spokes 24" x 3.50" Vee Speedster tires with Kevlar flat protection 13" high-rise steel handlebar and MX stem with foam grips Sun XL trike saddle with heavy duty steel base Steel chain guard Alloy basket with solid wood deck UnisexWheel Size 24" Frame Color Aqua Gloss /Black Metallic Black Rims Step Through 14" Min Saddle Height 27"Overall Dimensions 74" L x 30.25 WBike Weight 68 LbsRider Weight Limit 250 Lbs
Frameset
Frame
670681
High-Tensile Steel, TIG-Welded
Fork
28722
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets
Drivetrain
Crank Set
One-Piece Heavy Duty Hot Forged Steel, 170mm
Chainwheel
Steel, 36T x 1/2'' x 3/32"
Bottom Bracket
Steel for OPC, Caged Bearings with Seal
Chain
K.M.C. 1/2 x 3/32''
Rear Derailleur
SunRace RD-M41
Rear Shifter
SunRace 7-Speed Twist Shifter
Pedals
Slip Resistant Top, 1/2"
Brakes
Front Brake
Promax Mechanical Disk, 160mm Rotor
Rear Brake
Promax Mechanical Disk, 160mm Rotor
Brake Lever
Promax, Linear Pull W/Parking Lock
Components
Handlebar
Steel, 31.5" Wide x 13" Rise x 22.2mm Clamp

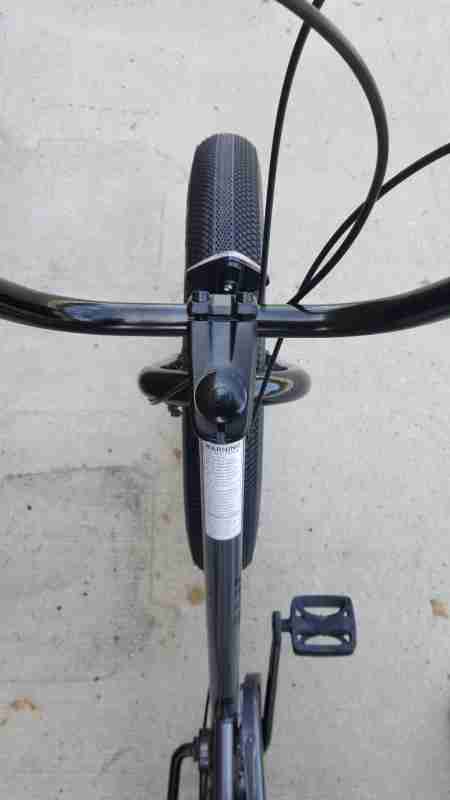

Stem
Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp
Grips
Contoured Foam, 130mm Left / 90mm Right
Headset
Steel, Semi Cartridge Bearings, 28.6 x 34 x 30mm
Saddle
Deluxe Cruiser, Double Coil Spring Suspension
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12"
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type
Wheels
Front Hub
Alloy, 36H x 14G x 3/8" Bolt-On Axle, Black (135mm O.L.D / Disc Compatible)
Rear Hub
370774
Steel, Large Flange, 36H x 14G with Cartridge Bearings
Spokes
14G Stainless Steel with CP Brass Nipples
Rims
470430
24" x 80mm Wide x 36H x 14G, Alloy
Tires
24" x 3.50" Sand Storm Cruiser Tire
Tubes
24" x 3.50", Schrader Valve
Accessories

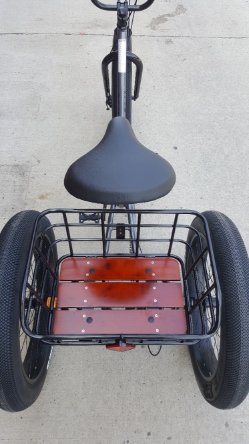

Basket
90372
Custom Tubular Alloy Basket w/Wood Insert
Replacement Parts

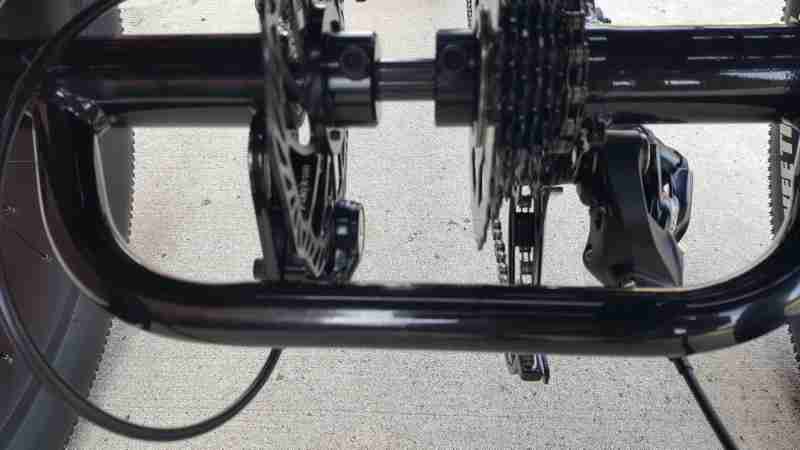

Frame Rear Unit
670533
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Chainguard
290300
Steel, Painted
Rear Unit Hardware
Rear Unit Hardware (Includes (4) bolts, (6) nuts, (4) washers)
Rear Unit Bearing
Rear Unit Bearing for 17mm Axle (Quantity of (4) needed for rear unit)
Rear Unit Axle Complete
Rear Unit Axle, 17mm x 765mm (Includes (1) axle, (2) nuts, (2) washers, (1) axle spacer)
Rear Unit Axle Nut
Rear Unit Axle Nut (For 15mm / 17mm axle)
Rear Unit Axle Washer
Rear Unit Axle Washer (For 17mm axle)
Rear Unit Axle Spacer
Rear Unit Axle Spacer, 20mm (For 17mm axle)
Rear Unit Axle Key
Rear Unit Axle Key (For 15mm/17mm axle)
Freewheel Adaptor
Freewheel Adapter (For 17mm axle, includes (2) set screws)
Freewheel Adaptor Set Screw
Set Screw for Freewheel Adapter
Rear Hub Bearings
Cartridge Bearings
Basket Hardware
90373
Trike Basket Mounting Hardware
