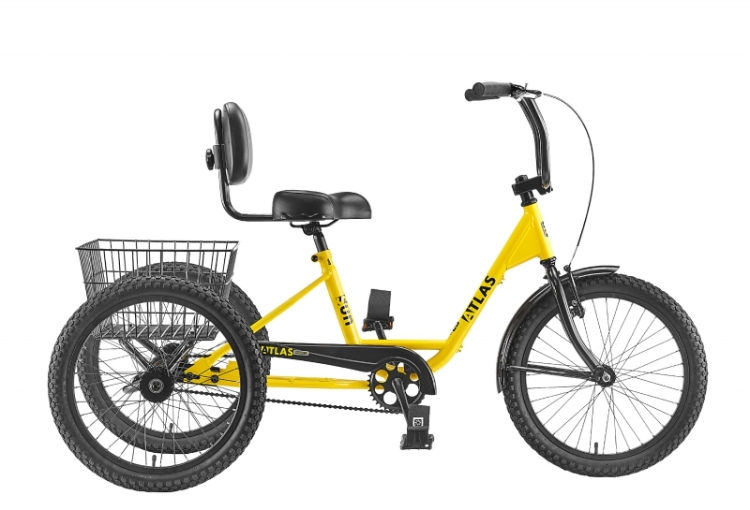

The Atlas Transit is our medium duty trike perfect for hauling groceries from the local market or transporting packages around a warehouse. The frame is designed with the same Low-Step as our Traditional trike making for easy on and off access. Along with a complement of durable components, the 24" version is customizable with 3 different wheel styles. The 20" SD version comes stock with alloy wheels, includes a Sun custom trike saddle with adjustable backrest, and Velcro toe straps for secure foot placement.
High-tensile steel Low-Step frame Single-speed drivetrain (Additional gearing options available separately) Alloy linear-pull front brake with parking lock (Additional brake options available separately) One-piece steel crank with sealed bottom bracket Alloy rims with stainless steel spokes 20" x 2.125" multi-condition tires 11" high-rise steel handlebar and threadless MX stem with rubber grips Sun cruiser saddle with adjustable back rest Steel chain guard and front fender Platform pedals with adjustable velcro toe straps Vinyl coated heavy duty steel wire basket All components coated with ED black finish to resist rust Unisex 20" Wheel Safety Yellow / Jet Black Black Rims Over All Dimensions 63.5" L x 30.25" WFrame Standover 13.5"Min Seat to Ground 26.5"Min Seat to Pedals 23.5"Trike Weight 49 LbsRider Weight Limit 250 LbsFrameset
Frame
670677
High-Tensile Steel, TIG-Welded
Fork
28721
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets
Drivetrain
Crank Set
One-Piece Steel, 5-1/2", Black
Chainwheel
Steel, 36T x 1/2'' x 1/8'', Black
Bottom Bracket
Steel for OPC, Caged Bearings with Seal, Black
Freewheel
20T x 1/2" x 1/8"
Chain
1/2" x 1/8", 118 Links Total
Pedals
41746
VP 875, Slip Resistant Top, 1/2", Black
Brakes
Front Brake
Alloy, Linear Pull
Brake Lever
Linear Pull W/Parking Lock
Components
Handlebar
Steel, 30" Wide x 11" Rise x 22.2mm Clamp
Stem
Alloy, Threadless, 28.6 x 50mm x 0 deg x 22mm Clamp
Headset
Steel, Threadless, 28.6 x 34 x 30mm
Grips
Heavy Duty Rubber, 125mm, Black
Saddle
50479
Youth Cruiser, Elastomer Suspension, Adjustable Backrest
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12", Black
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type
Wheels
Front Wheel
640436
20" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Rear Wheel
640437
20" x 1.75 x 36H x 14G Alloy-Trike, Bolt-On
Rims
470429
20" x 36H x 14G, Alloy, Black
Tires
591390
20" x 2.125", Black Wall
Tubes
20" x 2.125", Schrader Valve
Accessories
Front Fender
Steel, W/Single Strut, Painted
Basket
Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High
Replacement Parts
Frame Rear Unit
670533
High Tensile Steel, TIG-Welded, Disc and Der Compatible
Chainguard
290297
Steel, Painted
Rear Unit Hardware
Rear Unit Hardware (Includes (4) bolts, (6) nuts, (4) washers)
Rear Unit Bearing
Rear Unit Bearing (Quantitiy of (4) needed for rear unit)
Rear Unit Axle Complete
Rear Unit Axle, 14.8 x 765mm (Includes (1) axle, (2) nuts, (2) washers, (1) axle spacer)
Rear Unit Axle Nut
Rear Unit Axle Nut (For 14.8mm axle)
Rear Unit Axle Washer
Rear Unit Axle Washer (For 14.8mm axle)
Rear Unit Axle Spacer
Rear Unit Axle Spacer, 20mm (For 14.8mm axle)
Rear Unit Axle Key
Rear Unit Axle Key (For 14.8mm axle)
Freewheel Adaptor
Freewheel Adapter (For 14.8mm axle, includes (2) set screws)
Freewheel Adaptor Set Screw
Set Screw for Freewheel Adapter
Basket Hardware
Trike Basket Mounting Hardware
