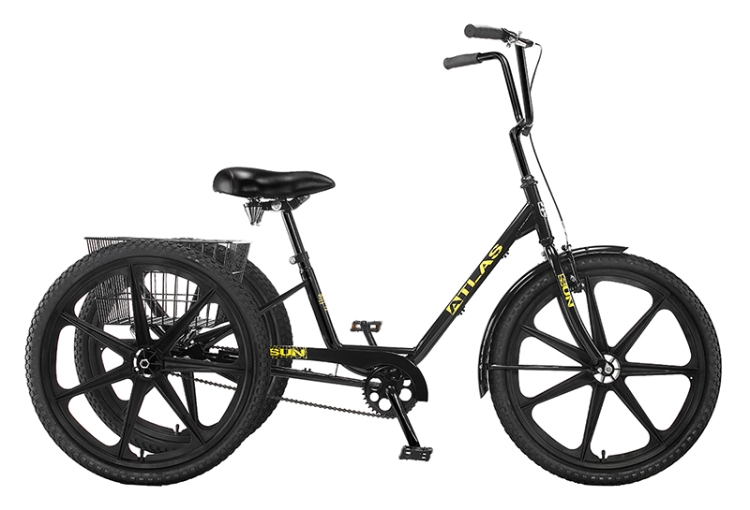

The Atlas Deluxe brings safety, durability and stability to everyone who rides these well-built three-wheelers. It's a heavy-duty version of our famous Miami Sun trike, featuring a tall handlebar and smooth-riding cruiser saddle with spring suspension, sealed crank and headset bearings for durability, ED plating on all drivetrain parts to resist corrosion, a heavy-gauge wire basket for all sorts of cargo and several 24" wheel options. For the beach or the warehouse, our Atlas Deluxe is built for the long haul. Available in several frame colors and with five 24" wheel options.
High-tensile steel ultra-low 15.5" step-through frame High-rise handlebars Alloy v-brake front handbrake with parking lock Sealed bearing headset & BB Extra-large deluxe trike saddle with double coil spring suspension Heavy-gauge vinyl-coated basket, 21"x15"x9", (thicker than traditional trike basket) All components coated with ED black finish to resist rust 250 Pound Limit (Rider & Cargo Combined) Outer Dimensions (30.25" Wide x 68" Long) Includes Tires - Wheels Sold Separately .......................................................................... ...Skyway Mag Wheelset (Black/Grey/White) ...Skyway Mag Wheelset (Black with Skyway Flat-Free Solid Tires, 1.75" width) ...Lightweight Alloy Wheelset (14G Stainless Spokes) ...Heavy Duty Steel Wheelset (12G Stainless Spokes) Black
Frameset
Frame
High Tensile Steel, TIG-Welded
Fork
1-1/8" Hi Tensile Steel, Curved Legs, Double Eyelets
Drivetrain
Crank Set
One-Piece Heavy Duty Hot Forged Steel, 170mm, Black
Chainwheel
Steel, 36T x 1/2'' x 1/8'', Black
Bottom Bracket
Steel for OPC, Caged Bearings with Seal, Black
Freewheel
20T x 1/2" x 1/8"
Chain
Taya 1/2" x 1/8", (122 Links)
Pedals
41746
Slip Resistant Top, 1/2", Black
Brakes
Front Brake
Alloy, Linear Pull, Black
Brake Lever
Promax , Linear Pull W/Parking Lock, Black/Silver
Components
Handlebar
Steel, 27.6" Wide x 9" Rise x 25.4mm Clamp, Black
Stem
Alloy, 25.4 x 205mm Quill x 60mm Ext., Black
Grips
Heavy Duty Rubber, 125mm, Black
Headset
35042
Steel, Caged Bearings, Sealed, 25.4 x 34 x 30mm, Black
Saddle
Deluxe Cruiser, Double Coil Spring Suspension, Black
Seat Post
Steel w/o Clamp, W/Anti-Slip Knurling, 28.6 x 12", Black
Seat Clamp / Binder Bolt
Integrated Bolt/Nut Type, Silver
Wheels
Front Wheel
Ordered Separately
Rear Wheel
Ordered Separately
Tubes
24" x 1.90-2.35'', Schrader Valve
Accessories
Front Fender
Steel, W/Single Strut, Painted
Basket
Heavy Duty Steel, Black Vinyl Coated, 21" Long x 15" Wide x 9" High
Replacement Parts
Frame Rear Unit
High Tensile Steel, TIG-Welded
Chainguard
Steel, Painted
Rear Unit Hardware
Rear Unit Hardware (INCLUDES 4 BOLTS, 6 NUTS, 4 WASHERS)
Rear Unit Bearing
Rear Unit Bearing (QUANTITY OF 4 NEEDED FOR REAR UNIT)
Rear Unit Axle Complete
Rear Unit Axle, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)
Rear Unit Axle Nut
Rear Unit Axle Nut (FOR 14.8mm AXLE)
Rear Unit Axle Washer
Rear Unit Axle Washer (FOR 14.8mm AXLE)
Rear Unit Axle Spacer
Rear Unit Axle Spacer, 20mm (FOR 14.8mm AXLE)
Rear Unit Axle Key
Rear Unit Axle Key (FOR 14.8mm AXLE)
Freewheel Adaptor
Freewheel Adapter (FOR 15mm AXLE, INCLUDES 2 SET SCREWS)
Freewheel Adaptor Set Screw
Set Screw for Freewheel Adapter
Basket Hardware
Trike Basket Mounting Hardware Kit
