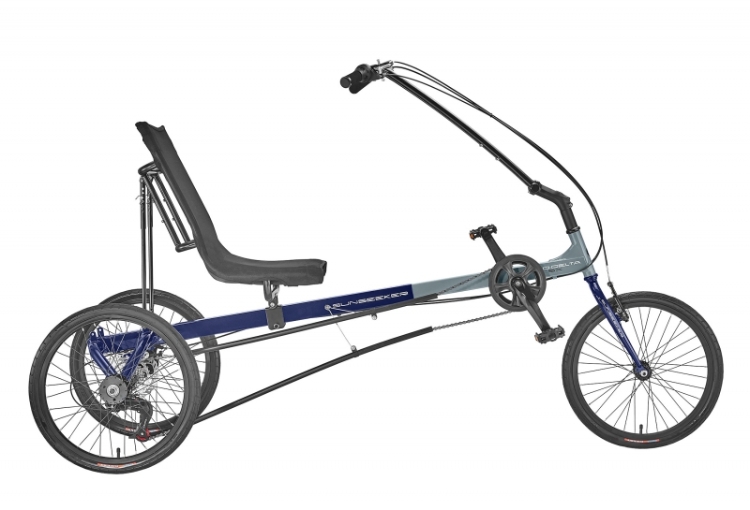

SUN SEEKER Eco-Delta SX Delta Style Recumbent Trike
  • Parts # 670112
  • Model : SUN SEEKER Eco-Delta SX
  • Supplier Part #
  • BIKE SUN SKR ECO-DELTA SX 20/20 7s BU/GY
  • Price: $949.99
      Assembly:

      Audible Warning Device:

      Basket Rear:

      Carriers:

      Color:

      Computer:

      Computer Mount:

      Flag:

      Head Rest:

      Inflation:

      Light Front:

      Light Rear:

      Lock:

      Mirror:

      Motor Kit:

      Motor Kit Battery:

      Mudguards:

      Paniers:

      Pedal Options:

      Rack Bag:

      Racks:

      Rider Height:

      Rider Weight:

      Rider X-Seam:

      Rollers:

      Tire Liners:

      Tires:

      Trike Cover:

      Tubes:

      Water Bottle Cage:


      Update price
      Quantity:

      The Eco Delta SX is the newest edition to the Sun Seeker delta trike family. This is our most affordable trike, but just because it's affordable doesn't mean that it's not full of features. It has a fully adjustable mesh-back saddle with a padded bottom that keeps you cool and comfortable on long outings. There are also spare bottle mounts on the handlebar and seat frame to let you carry plenty of hydration for the long hauls.


    • Wheel Base: 42-1/2" - 63"
    • Overall Length: 70-1/2" - 78-3/4"
    • Width: 30-1/2"
    • Seat Height: 20-1/2" - 22-3/4"
    • Weight: 57 Lbs
    • Weight limit: 300Lbs
    • X-seam: 31" - 50"
    • Unisex
    • 31-50"
    • Navy Blue / Gloss Grey
    • Black Anodized Rims
    • Frameset

      Frame
      670114
      High Tensile Steel, TIG-Welded
      Front Frame
      Delta Crank Boom, High Tensile Steel
      Fork
      High Tensile Steel, TIG-Welded
      Drivetrain
      Rear Shifter
      SunRace 7-Speed Twist Shifter
      Rear Derailleur
      SunRace, Long Cage
      Freewheel
      (7-Speed) 13-32T
      Freewheel Adapter
      Freewheel Adapter Threaded
      Crank Set
      3-Piece Alloy W/Integrated Chain Ring, 38T, 170mm, Black
      Bottom Bracket
      Steel, Caged Bearings, 68 x 119mm
      Chain
      K.M.C. 1/2 x 3/32'' (286 Links)
      Chain Tube
      Guide Tube
      Chain Tube Bracket
      Double Spring w/Hardware
      Chain Tube Clamp
      Clamp w/Hardware
      Pedals
      Resin Body, 9/16"
      Brakes
      Front Brake
      Alloy, Linear Pull, Black
      Rear brake
      Promax DSK-400 Disc w/160mm Rotor
      Components
      Headset
      Steel, 25.4 x 34 x 30mm, Black
      Handlebar
      Steel, Recumbent w/2 Bottle Braze-ons
      Stem
      Steel, 25.4 x 220mm Quill x 40mm Ext. x 25.4 Clamp
      Grips
      EVA Rubber, Locking, 130mm Left / 65mm Right
      Front Brake Lever
      Linear Pull, w/Lock, Black/Silver
      Rear Brake Lever
      Linear Pull, w/Lock, Black/Silver
      Wheels
      Front Hub
      37900
      Steel, 36H x 14G with 3/8" Bolt-On Axle, Black
      Rear Hub
      Trike Steel, Pinned, Steel, 36H, Black
      Front Rim
      20'' x 36H x 14G, Alloy, Black
      Rear Rim
      20'' x 36H x 14G, Alloy, Black
      Spokes
      14G UCP with Brass Nipples
      Front Tire
      Kenda Kwest 20 x 1.50", Black Wall
      Rear Tire
      Kenda Kwest 20 x 1.50", Black Wall
      Replacement Parts
      Rear Axle
      Rear Axle, Trike, 14.8 x 765mm (INCLUDES 1 AXLE, 2 NUTS, 2 WASHERS, 1 AXLE SPACER)
      Axle Bearing
      Rear Unit Axle Bearing 15id x35od x11w X3-SX/AX
      Axle Retaining Nut
      Rear Unit Axle Nut (FOR 14.8mm AXLE)
      Seat Frame
      50181
      R-Type 1-Pc Steel, Black
      Seat Mesh
      R-Type 1-Pc Seat Back Mesh
      Seat Mount
      Steel for Eco Delta/Tad 50mm TT
      Seat Mount Binder
      QR M6x95mm Alloy, XL Lever
      Upper Strut
      Steel 150mm Black
      Upper Strut Bolt
      M5x35mm
      Upper Strut Washer
      Curved Nylon Washer
      Lower Strut
      Steel, Pin Type, 700mm Universal
      Lower Strut Slide Bolt
      Lower Strut Bolt and Nut
      Strut Clamp
      Pin with QR

      Other
      Weight
      57 Lbs.
