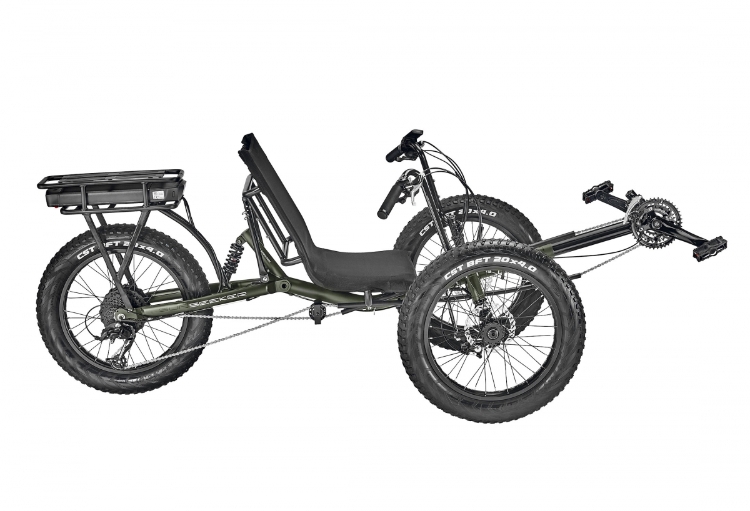

BIKE SUN SKR E-FAT TAD ELECTRIC ASSIST 20/20 24s DK-GN

Item #: J670913
Price: $4,699.99
    The product is in stock Availability: In Stock
    Usually ships In 1-2 Business Days
    In Stock Quantity: 27

    Quantity:

    About This Item

  • Part # 670913
  • Model : SUN SEEKER E-Fat Tad Electric Assist Tadpole
  • BIKE SUN SKR E-FAT TAD ELECTRIC ASSIST 20/20 24s DK-GN
  • 20 mph / 500 watt pedal-assist motor
  • 48V / 10.4Ah lithium-ion rack-mount battery
  • Class 1 with five levels of pedal assist
  • Rear coil-over suspension and integrated front suspension
  • Promax mechanical disc brake system for front wheels
  • Alloy rims, 55mm wide, with 20 x 4.0` tires tuned for all trail conditions
  • Full-range SunRace shifting with 3x8 gearing
  • Ergonomic chromoly handlbars / Air-mesh seat with alloy seat frame
  • 10` of trail-ready ground clearance
  • ----------------------------------------------------------------
  • Wheel Base: 46.25` (118cm) / Width: 36.25` (92cm)
  • Overall Length: 78` - 83.5` (198 - 212cm)
  • Seat Height: 16.5`- 17.75` (42-45cm)
  • Bottom Bracket Height: 20` - 21.5` (51-55cm)
  • Weight: 84 lbs / Weight Limit: 300 lbs
  • Unisex
  • 37-50.5` X-Seam
  • Semi-Gloss Dark Green
  • 20`
  • Black
  • 78-83.5` (198-212cm)
  • 24 Speed
  • Disc Brake
  • n/a
  • eFAT TAD SPECIFICATIONS

    Wheel Base 59″ (150cm)
    Overall Length 78″ – 83 1/2″ (198-212cm)
    Width 36 1/4″ (92cm)
    Seat Height 16 1/2″ – 17 3/4″ (42-45cm)
    B.B. Height 20″ – 21 1/2″ (51-55cm)
    Ground Clearance 10″ (25cm)
    Frame Tig Welded Chromoly with Rear Coil Over Suspension
    Fork High Tensile Steel with Integrated Suspension
    BB Sealed Cartridge
    Crank Triple Alloy 170mm 42/32/22T
    F. Derailleur Sunrace
    R. Derailleur Sunrace
    Shifter Sunrace
    Freewheel 11-34 8 Speed
    Motor 500-watt pedal assist
    Battery 48 volt / 10.4AH LiOn
    Bluetooth Yes
    Top Speed Up to 20mph
    Display LCD Multi-function with 5-levels of pedal assist
    Pedals Platform
    Brake Front Promax Mechanical Disk
    Brake Rear N/A
    Brake Levers Promax Alloy w/Lock
    Headset Sealed Mechanism Steel
    Handlebar Chromoly w/ Bottle Braze-ons
    Stem N/A
    Hub Front Alloy Tadpole
    Hub Rear Hub drive motor
    Rim Front 20x54mm 36h Fat Bike Alloy
    Rim Rear 20x54mm 36h Fat Bike Alloy
    Spokes 13g. Stainless Steel
    Tire Front 20×4.0 Fat Bike Knobby
    Tire Rear 20×4.0 Fat Bike Knobby
    Saddle Alloy Frame 1pc – Padded/Mesh w/ Bottle Braze-ons
    Seat Slide Rans Style
    Weight 84lbs.
    Weight Limit 300lbs.
    X-Seam 37″ – 50 1/2″ (94-128cm)*
    *Boom modification may be required from 37″ – 40″
    Features Heavy Duty Alloy Chain Guide Wheels
    Custom alloy rear cargo rack incorporating the battery
