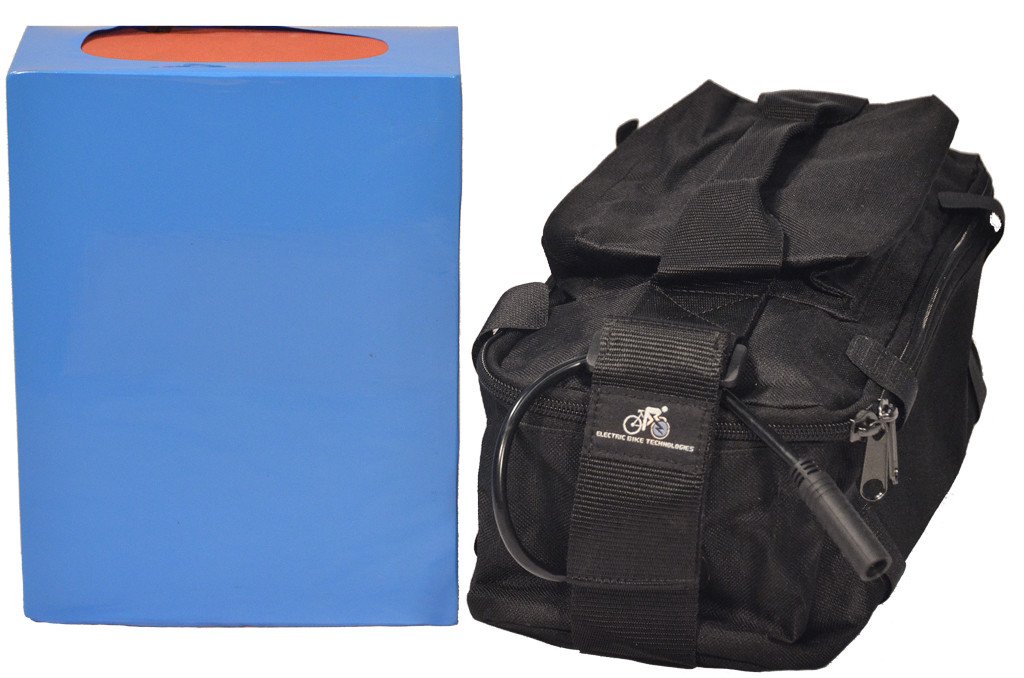

Battery Lithium Ion 48 Volt 20 Ah

INCLUDES 4 AMP CHARGER

These Li-ion batteries are our longest lasting E-Bike Battery, and have a longer lifespan than other types of Lithium batteries. They typically last 2-4 years. They are also our lightest batteries - at half the weight of lead-acid batteries, they store in a rack-top battery bag which attaches to any bike rack using velcro straps. These batteries are lower-cost and lighter weight than our 10ah Aluminum Case batteries

Shipping Note: Li-ion batteries are shipped separately from electric bike kits. Li-ion battery packs are shipped via UPS HazMat and require a signature for delivery. You may receive your kit, battery and possibly the battery rack (if applicable), on separate days.

Tracking information is send via email direct from UPS at the time your order is shipped.

w/ 500w Direct-Drive "Heavy duty" and Trike Motor
Range: 24-44 Miles (Rider Weight, Rider Input and Terrain Contingent)
Charging Time: 20ah pack = 5hrs / 4Amp Charger = 4 amps charged per hour
Nominal Voltage: 48v
Nominal Capacity: 20Ah (0.2C)
Battery Energy: 960Wh (Approx.)
Dimensions: 9 1/2" (241mm) x 7 1/4" (184mm) x 3 3/8" (86mm) (Approx.)
Total Weight: 14bs/6.35kg
Cell Assembly: 18650-3.6v-13S10P
Life Cycles: 800-1000 cycles
Max. Continuous Discharge: 50A
BMS Protection Current: 60A
Discharge Cut-Off Voltage: 39v
Max. Charge Voltage: 54.6v
Inner Resistance: <= 180mΩ
Charge Time: <= 5 hours
Operation Temperature Range: Charge: 0’C---45’C / Discharge: -20’C---60’C
Storage Temperature: 0’C---40’C (Extended Storage: 15’C-25’C;)
Battery Case Material: Blue PVC Shrink Wrap
Assembled Pack Certificates: UL; UN38.3; MSDS; RoHS; SGS
Limited Warranty: 1 Year
