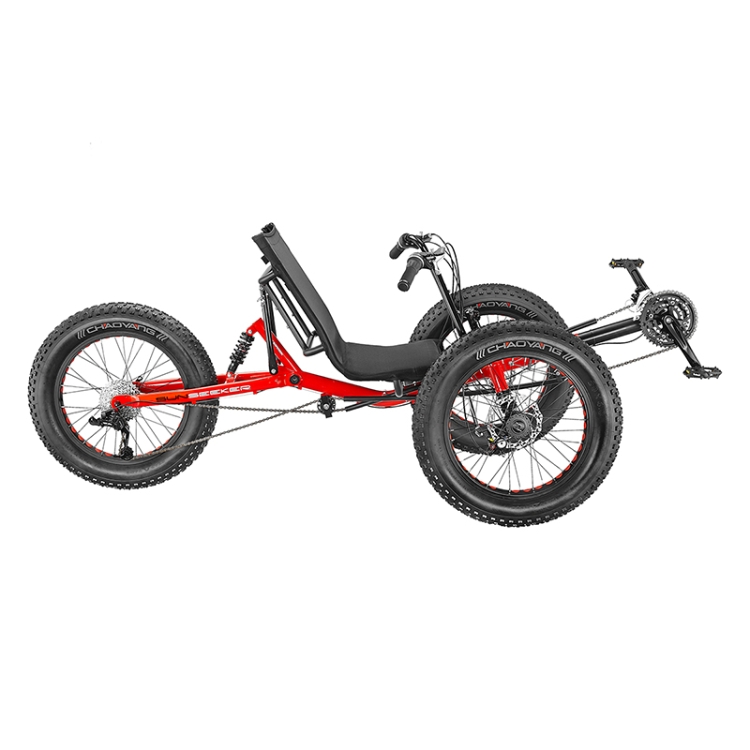

The Sun Seeker Fat Tad CX is the most fun you’ll have this low to the
ground off road. This bad boy is equipped with front and rear
suspension, chromoly frame and 4 inch wide off road tires! The Fat Tad
will handle sand and gravel like no other trike out there. Other
features include aluminum seat frame, padded seat and provisions to
mount 4 water bottle cages.
Rear coil-over suspension and integrated front suspension Alloy rims, 55mm wide, 170mm rear hub with Q/R Promax mechanical disc brake system for front wheels 20 x 4.0" tires tuned for all trail conditions Full-range SRAM shifting with 3x8 gearing Ergonomic chromoly handlbars Air-mesh seat with alloy seat frame 10" of trail-ready ground clearance ---------------------------------------------------------------- Wheel Base: 59" (150cm) Overall Length: 78" - 83.5" (198 - 212cm) Width: 33.25" (92cm) Seat Height: 16.5"- 17.75" (42-45cm) Bottom Bracket Height: 20" - 21.5" (51-55cm) Weight: 57 lbs X-Seam: 37" - 50.5" (94-128cm) (Boom modification may be required from 37" - 40") Unisex Gloss Black/Bright Red Black Anodized Rims Length 78-83.5" (198-212cm)Weight Limit: 300 lbs
Frameset
Frame
4130 Chromoly, TIG-Welded
Front Frame
Tadpole Crank Boom, Chromoly Steel
Rear Frame
Rear Frame Suspension Swingarm
Shock
FAT-TAD CXs Shock, 150mm
Frame Pivot Bolt
Frame Pivot Bolt, FAT-TAD Swingarm
Left Fork
28531
Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount
Right Fork
28532
Custom-Cast High-Tensile Steel, Threadless Stem, Disc Mount
Drivetrain
Front Shifter
SRAM 3.0 3-Speed Grip Shift
Rear Shifter
SRAM 3.0 8-Speed Grip Shift
Front Derailleur
Sunrace, DP, 34.9-31.8
Freewheel
Sunrace (8-Speed Cassette) 11-34T
Crank Set
3-Piece Alloy, 170mm, 22, 32, 42T, Black
Bottom Bracket
Sealed Cartridge, 100 x 164mm
Chain
K.M.C., 1/2" x 3/32", Sil/Gry
Chain Guide
Guide Wheel for Double
Chain Guide Hardware
16182
Guide Wheel Hardware Double
Chain Tube Bracket
Double Spring w/Hardware
Chain Tube Clamp
Clamp w/Hardware
Pedals
Nylon Fiber Body, 9/16" Chromoly Spindle
Brakes
Front Brake
Promax DSK-400 Mechanical Disk, 160mm Rotor
Components
Headset
Steel, Caged Bearings, 28.6 x 34 x 30mm, Black
Right Handlebar
Tadpole Right Handlebar w/28.6mm Steerer Clamp
Left Handlebar
Tadpole Left Handlebar w/28.6mm Steerer Clamp
Grips
EVA Rubber, Locking, 75mm, Black
Front Brake Lever
Promax BL-46K, Linear Pull, w/Lock, Black/Silver
Rear Brake Lever
Promax BL-46K, Linear Pull, w/Lock, Black/Silver
Wheels
Front Hub
Alloy, 36H x 14G Tadpole, Disc, Black
Rear Hub
Alloy, 36H x 14G with Q/R Axle, Black (For Cassette)
Front Rim
20" x 36H x 14G x 54mm, Alloy w/Cutouts, Black
Rear Rim
20" x 36H x 14G x 54mm, Alloy w/Cutouts, Black
Spokes
14G Stainless Steel with Brass Nipples, Black
Front Tire
20 x 4.0" Fat Tire, Black Wall
Rear Tire
20 x 4.0" Fat Tire, Black Wall
Replacement Parts
Head/Derailleur Tube Cap
Head/Derailleur Tube Cap
Steering Linkage
FAT-TAD Tadpole 540mm Black
Left Rod End
Left Hand Thread
Right Rod End
Right Hand Thread
Seat Frame
R-Type 1-Pc Alloy, Black
Seat Mesh
R-Type 1-Pc Seat Back Mesh
Seat Back Pivot Bolt
Seat Mount Pin for R-Type
Upper Strut
Alloy, Pin Type, 150mm
Lower Strut
Alloy, Pin Type, Custom 185mm Length
Lower Strut Slide Bolt
Lower Strut Bolt and Nut
Strut Peg QR
Steel Pin, QR
